| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Halogen Free | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Minimum Multiplicity | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

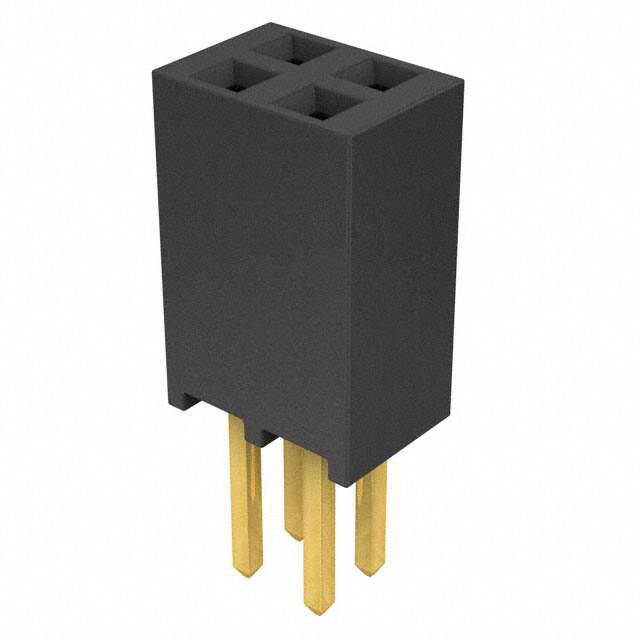

The Samtec SSQ-102-02-G-D is a 4-position, 2-row socket strip receptacle with a 2.54mm (0.100") pitch. It features a through-hole mounting style with solder termination and a push-pull fastening mechanism. The insulator is black liquid crystal polymer with UL94 V-0 flammability rating.
Electrical specifications include a current rating of 6.3A per pin (with 2 pins powered, mated with TSW) and a voltage rating of 465VAC/655VDC. The operating temperature range is -55°C to +125°C. Contacts are phosphor bronze with 20µin (0.51µm) gold plating.
This receptacle is designed for board-to-board or cable applications. It mates with Samtec TSW, MTSW, and other series. The insertion depth ranges from 3.68mm to 6.35mm. Packaging is bulk with minimum quantity 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
| 10+ | $1.09 | $1.09 |
| 1,000+ | $0.92 | $0.92 |
| 2,500+ | $0.82 | $0.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm (0.100").
6.3A per pin (2 pins powered, mated with TSW).
465VAC/655VDC.
Through hole.
-55°C to +125°C.
Gold, 20µin (0.51µm).
