| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

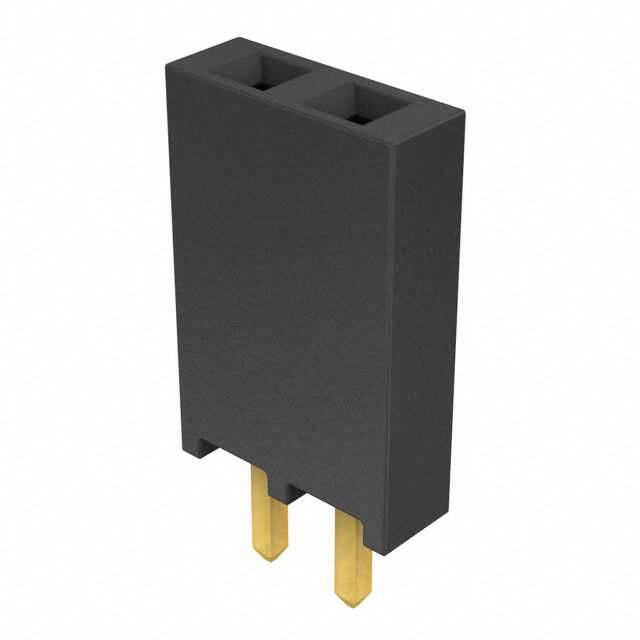

The SSQ-102-01-G-S is a 2 position, single row, through-hole receptacle socket strip from Samtec's SSQ series. It features a 2.54 mm (0.100") pitch and uses the Tiger Buy contact system with phosphor bronze contacts plated with 20 microinches (0.51 µm) of gold over 50 µ" nickel. The black liquid crystal polymer insulator is rated UL94 V-0 for flammability.
The connector is designed for board-to-board or cable applications with a push-pull fastening style. It mates with Samtec TSW, MTSW, MTLW, and other series, supporting a current rating of 6.3 A per pin when both pins are powered. The operating temperature range spans -55°C to +125°C.
Packaged in bulk, this connector is lead-free solderable for the -S row option. The through-hole square tail measures 2.64 mm (0.104") long, providing reliable solder termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.72 | $0.72 |
| 25+ | $0.72 | $0.72 |
| 50+ | $0.69 | $0.69 |
| 100+ | $0.61 | $0.61 |
| 250+ | $0.55 | $0.55 |
| 500+ | $0.52 | $0.52 |
| 2,500+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54 mm (0.100 inches).
It has 2 positions, with all positions loaded in a single row.
The current rating is 6.3 A per pin when both pins are powered, tested with SSQ/TSW mate.
The voltage rating is 465 VAC and 655 VDC.
It is a through-hole mounting receptacle, with solder termination.
