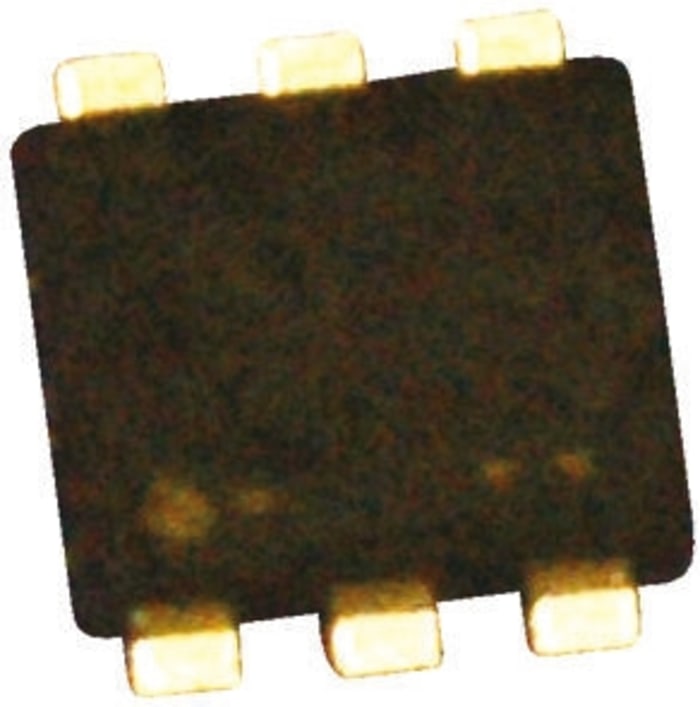

SSM6P25TU The Toshiba SSM6P25TU is a Dual P-Channel MOSFET designed for various electronic applications. It offers a 20V drain-source voltage and 500 mA continuous drain current.
Mfr Part #:

SSM6P25TU

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba SSM6P25TU is a Dual P-Channel MOSFET designed for various electronic applications. It offers a 20V drain-source voltage and 500 mA continuous drain current.
✓ Total Stock: 241,067 pcs
$ Price Range: $2.81

SSM6P25TU Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
241,067 pcs
On Request
241067 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSM6P25TU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Height
Lead Style
Length
Mounting Type
Storage Temperature
Width
View Similar Products (0)

SSM6P25TU Description

Short technical summary and product information.

The Toshiba SSM6P25TU is a dual P-channel MOSFET with a drain-source voltage rating of 20V and a maximum continuous drain current of 500 mA. It features a low maximum drain-source on-resistance of 260 mΩ and a gate threshold voltage of 1.1V.



This MOSFET is constructed with silicon (Si) and operates in enhancement mode. It is configured as an isolated device with two elements per chip. The component is housed in a compact UF package, suitable for surface mounting.



With a maximum power dissipation of 500 mW and an operating temperature range from -55°C to +150°C, the SSM6P25TU is designed for reliable performance in demanding environments. Its P-channel configuration and dual-element design make it suitable for switching and amplification applications.

SSM6P25TU Quick Information

Product Type: MOSFET
Series: SSM6
Canonical Name: Toshiba SSM6P25TU Dual P-Channel MOSFET
Subcategory: Dual P-Channel

SSM6P25TU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSM6P25TU Estimated Pricing

Qty Low High
1+ $2.81 $2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSM6P25TU Features

  • Dual P-Channel MOSFET configuration.
  • 20V maximum drain-source voltage.
  • 500 mA maximum continuous drain current.
  • Surface mount UF package.
  • Wide operating temperature range.

SSM6P25TU Applications

  • Suitable for power switching applications.
  • Used in general electronic circuits.
  • Ideal for low-voltage applications.
  • Component for control circuitry.

SSM6P25TU FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the SSM6P25TU?

The maximum drain-source voltage is 20V.

What is the maximum continuous drain current of the SSM6P25TU?

The maximum continuous drain current is 500mA.

What is the maximum drain-source on-resistance of the SSM6P25TU?

The maximum drain-source on-resistance is 260mΩ.

What is the maximum gate threshold voltage of the SSM6P25TU?

The maximum gate threshold voltage is 1.1V.

What is the maximum power dissipation of the SSM6P25TU?

The maximum power dissipation is 500mW.

What is the operating temperature range of the SSM6P25TU?

The operating temperature range is -55°C to +150°C.

What is the package type of the SSM6P25TU?

The SSM6P25TU comes in a surface-mount package with 6 pins, measuring 2.0mm x 1.7mm x 0.7mm.
