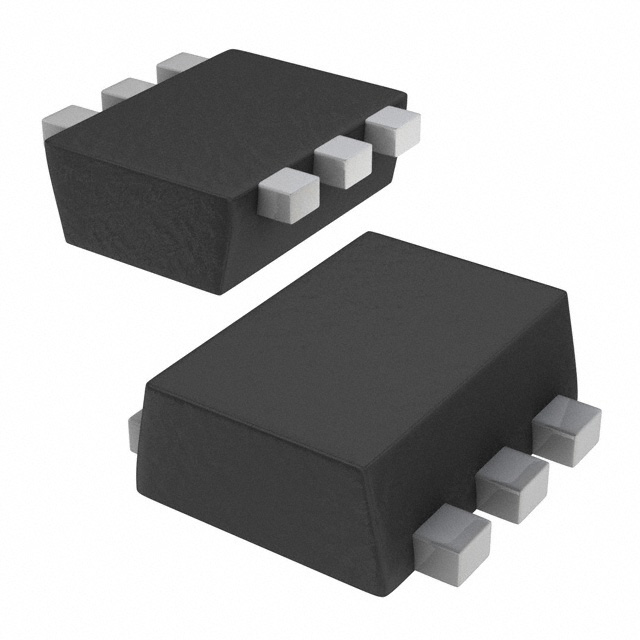

SSM6N815R,LF The Toshiba SSM6N815R,LF is a 2 N-Channel MOSFET with a 100V drain-source voltage and 2A continuous current rating. It features a surface mount 6-TSOP-F package.
Mfr Part #:

SSM6N815R,LF

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba SSM6N815R,LF is a 2 N-Channel MOSFET with a 100V drain-source voltage and 2A continuous current rating. It features a surface mount 6-TSOP-F package.
✓ Total Stock: 7,103 pcs
$ Price Range: $1.64

SSM6N815R,LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
7,103 pcs
On Request
7103 pcs On Request 1 On Request On Request 2324/2250 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSM6N815R,LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

SSM6N815R,LF Description

Short technical summary and product information.

The Toshiba SSM6N815R,LF is a dual N-Channel MOSFET designed for surface mount applications. It offers a drain-to-source voltage (Vdss) of 100V and a continuous current rating of 2A (Ta).



Key electrical characteristics include a maximum on-resistance (Rds On) of 103mOhm at 2A and 10V, a gate charge (Qg) of 3.1nC at 4.5V, and a gate threshold voltage (Vgs(th)) of 2.5V at 100µA. This MOSFET supports logic level gate and 4V drive.



Packaged in a 6-SMD, Flat Leads (6-TSOP-F) configuration, the SSM6N815R,LF has a maximum operating temperature of 150°C and a power dissipation of 1.8W (Ta). Its input capacitance (Ciss) is 290pF at 15V.



This component is suitable for various electronic designs requiring efficient switching and power management in a compact form factor.

SSM6N815R,LF Quick Information

Product Type: MOSFET
Canonical Name: SSM6N815R,LF
Subcategory: Arrays

SSM6N815R,LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSM6N815R,LF Estimated Pricing

Qty Low High
1+ $1.64 $1.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSM6N815R,LF Features

  • Dual N-Channel MOSFET configuration.
  • 100V drain-to-source voltage rating.
  • 2A continuous current capability.
  • Low 103mOhm on-resistance.
  • Surface mount 6-TSOP-F package.

SSM6N815R,LF Applications

  • Ideal for motor driver bridge circuits.
  • Used in DC-DC converter switching stages.
  • Suitable for relay and solenoid drivers.
  • Fits compact load switch designs.

SSM6N815R,LF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage for the SSM6N815R,LF?

The drain-to-source voltage (Vdss) is 100V.

What is the continuous current rating of the SSM6N815R,LF?

The continuous current rating is 2A (Ta).

What is the maximum operating temperature for this MOSFET?

The maximum operating temperature is 150°C.

What package type is the SSM6N815R,LF supplied in?

It is supplied in a 6-SMD, Flat Leads package, specifically a 6-TSOP-F.

Is the SSM6N815R,LF RoHS compliant?

Yes, it is RoHS3 Compliant.
