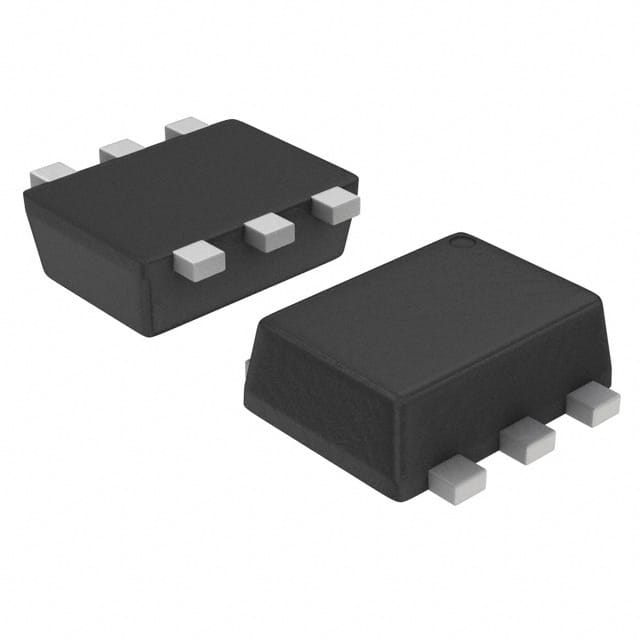

SSM6N16FE,L3F The Toshiba SSM6N16FE,L3F is a 2 N-Channel MOSFET array suitable for high-speed and analog switching applications. It features a 20V drain-source voltage and 100mA continuous drain current.
Mfr Part #:

SSM6N16FE,L3F

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba SSM6N16FE,L3F is a 2 N-Channel MOSFET array suitable for high-speed and analog switching applications. It features a 20V drain-source voltage and 100mA continuous drain current.
✓ Total Stock: 13,066 pcs
$ Price Range: $1.64

SSM6N16FE,L3F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
13,066 pcs
On Request
13066 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSM6N16FE,L3F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Configuration
Current
Drain to Source Voltage (Vdss)
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

SSM6N16FE,L3F Description

Short technical summary and product information.

The Toshiba SSM6N16FE,L3F is a silicon N-channel MOS type field-effect transistor array designed for high-speed switching and analog switching applications. Its compact SOT-563 or SOT-666 package makes it suitable for high-density mounting.



Key electrical specifications include a maximum drain-source voltage (Vds) of 20V and a continuous drain current (Id) of 100mA at 25°C. The on-resistance (Rds(on)) is a maximum of 3 Ohms at 10mA and 4V Vgs. The gate threshold voltage (Vth) is a maximum of 1.1V at 100µA.



This device operates within a channel temperature range of -55°C to 150°C and has a maximum power dissipation of 150mW at 25°C when mounted on a standard FR4 board. The input capacitance (Ciss) is 9.3pF at 3V.



Designed for surface mounting, the SSM6N16FE,L3F is available in Tape & Reel or Cut Tape packaging. It is suitable for various electronic circuits requiring compact and efficient switching.

SSM6N16FE,L3F Quick Information

Product Type: MOSFET Array
Canonical Name: Toshiba SSM6N16FE,L3F 2 N-Channel MOSFET Array
Subcategory: Array

SSM6N16FE,L3F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSM6N16FE,L3F Estimated Pricing

Qty Low High
1+ $1.64 $1.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSM6N16FE,L3F Features

  • Dual N-Channel MOSFET array
  • 20V Drain-Source Voltage
  • 100mA Continuous Drain Current
  • Low On-Resistance (3 Ohm max)
  • Surface Mount SOT-563/SOT-666 Package

SSM6N16FE,L3F Applications

  • Load switching in portable devices.
  • Logic level conversion circuits.
  • Signal multiplexing and routing.
  • Battery-powered equipment protection.

SSM6N16FE,L3F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the SSM6N16FE,L3F?

20V.

What is the continuous drain current rating?

100mA DC.

What is the on-resistance at different gate voltages?

3 Ohm at 4V gate drive, 4 Ohm at 2.5V, and 15 Ohm at 1.5V.

What is the gate threshold voltage?

Maximum 1.1V at Vds=3V and Id=0.1mA.

What is the input capacitance?

9.3pF at Vds=3V and f=1MHz.

What are the switching times?

Turn-on time 70ns and turn-off time 125ns typical at Vdd=3V, Id=10mA.

What package options are available for the SSM6N16FE,L3F?

SOT-563 or SOT-666 surface-mount package with supplier device package ES6.
