SSM6K403TU,LF The Toshiba SSM6K403TU,LF is an N-Channel MOSFET with a 20V drain-source voltage and a 4.2A current rating. It features a low on-resistance of 28mOhm at 3A, 4V.
Mfr Part #:

SSM6K403TU,LF

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba SSM6K403TU,LF is an N-Channel MOSFET with a 20V drain-source voltage and a 4.2A current rating. It features a low on-resistance of 28mOhm at 3A, 4V.
✓ Total Stock: 475,789 pcs
$ Price Range: $2.56

SSM6K403TU,LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
475,789 pcs
On Request
475789 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSM6K403TU,LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Lead Style
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

SSM6K403TU,LF Description

Short technical summary and product information.

The Toshiba SSM6K403TU,LF is a single N-Channel MOSFET designed for various electronic applications. It offers a drain-to-source voltage (Vdss) of 20V and can handle a continuous current of 4.2A at ambient temperature (Ta).



Key electrical characteristics include a maximum on-resistance (Rds On) of 28mOhm when measured at 3A drain current and 4V gate-source voltage. The input capacitance (Ciss) is 1050 pF at 10V, and the gate charge (Qg) is 16.8 nC at 4V gate-source voltage. The gate threshold voltage (Vgs(th)) is 1V at 1mA, with a maximum gate-source voltage (Vgs) of ±10V.

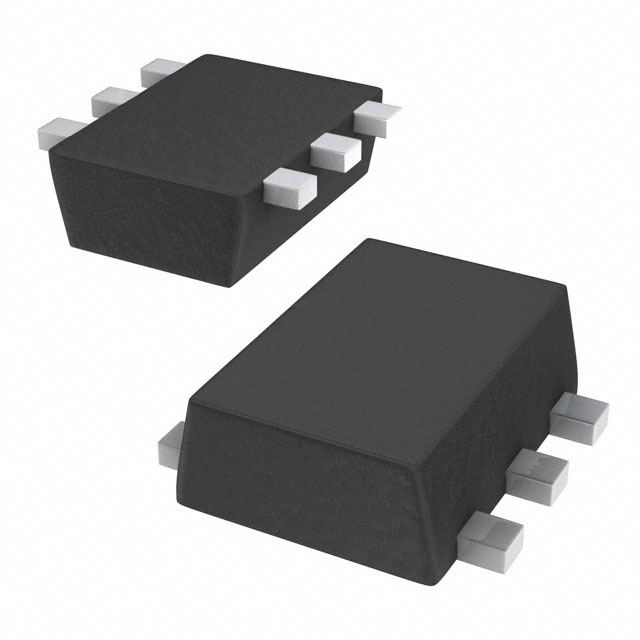

This MOSFET operates at a maximum junction temperature of 150°C and has a maximum power dissipation of 500mW at ambient temperature. It is housed in a UF6 package with a surface mount type and 6-SMD, Flat Leads configuration.



The SSM6K403TU,LF is specified with RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1. Its REACH status is unaffected.

SSM6K403TU,LF Quick Information

Product Type: MOSFET
Canonical Name: Toshiba SSM6K403TU,LF N-Channel MOSFET
Subcategory: Single

SSM6K403TU,LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSM6K403TU,LF Estimated Pricing

Qty Low High
1+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSM6K403TU,LF Features

  • N-Channel MOSFET with 20V drain-source voltage.
  • Handles 4.2A continuous current at ambient temperature.
  • Low 28mOhm maximum on-resistance at 3A, 4V.
  • Surface mountable in UF6 package.
  • RoHS3 compliant with MSL 1 rating.

SSM6K403TU,LF Applications

  • Ideal for power switching applications.
  • Suitable for low-voltage DC-DC converters.
  • Used in battery-powered devices.
  • Applicable in load switching circuits.

SSM6K403TU,LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage for the SSM6K403TU,LF?

The maximum drain-to-source voltage (Vdss) for the SSM6K403TU,LF is 20V.

What is the continuous current rating of the SSM6K403TU,LF MOSFET?

The SSM6K403TU,LF MOSFET has a continuous current rating of 4.2A at ambient temperature (Ta).

What is the maximum on-resistance of the SSM6K403TU,LF?

The maximum on-resistance (Rds On) for the SSM6K403TU,LF is 28mOhm when measured at 3A drain current and 4V gate-source voltage.

What is the operating temperature range for this MOSFET?

The operating temperature for the SSM6K403TU,LF is up to 150°C (TJ).

What type of package is the SSM6K403TU,LF in?

The SSM6K403TU,LF is supplied in a UF6 package, which is a 6-SMD, Flat Leads type for surface mounting.

Is the SSM6K403TU,LF RoHS compliant?

The SSM6K403TU,LF is specified as RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SSM6K403TU,LF?

The Moisture Sensitivity Level (MSL) for the SSM6K403TU,LF is 1.
