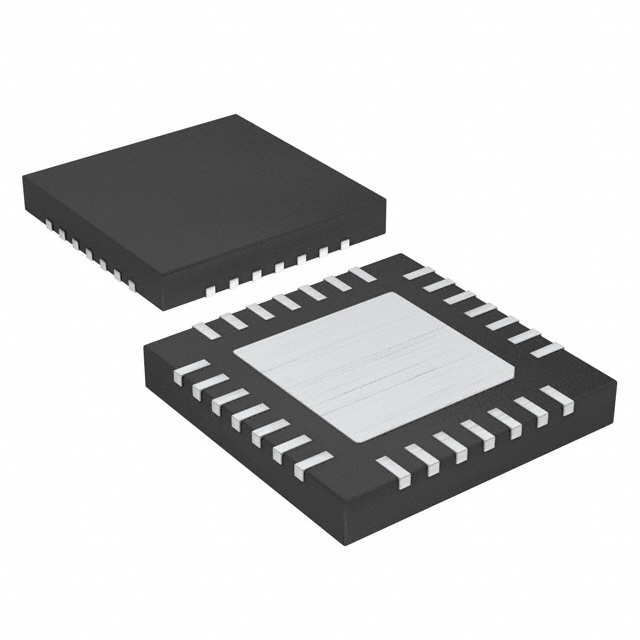

The SSM2603CPZ-REEL7 from Analog Devices is a high-quality, low-power stereo audio codec suitable for portable digital audio devices. It integrates 24-bit analog-to-digital converters (ADCs) and 24-bit digital-to-analog converters (DACs), offering a DAC SNR of 100 dB and an ADC SNR of 90 dB (A-weighted) at 48 kHz and 3.3V.
This codec supports a wide range of audio sampling rates from 8 kHz up to 96 kHz, with oversampling rates of 256/384 in normal mode and 250/272 in USB mode. It operates on analog supply voltages from 1.8V to 3.6V, with digital core voltages from 1.5V to 3.6V. Power consumption is notably low, with stereo playback consuming only 7 mW and record/playback consuming 14 mW at 1.8V/1.5V supplies.
The SSM2603CPZ-REEL7 is housed in a compact 28-lead, 5mm x 5mm LFCSP package, making it ideal for space-constrained applications. It features stereo line inputs and a monaural microphone input, along with a highly efficient headphone amplifier. The device can function as either a master or a slave in audio systems. Its operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.72 | $2.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DAC SNR is 100 dB (A-weighted) at 48 kHz and 3.3 V.
The ADC SNR is 90 dB (A-weighted) at 48 kHz and 3.3 V.
The operating voltage range is 1.8V to 3.6V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 28-lead LFCSP-WQ package.
It supports audio sampling rates from 8 kHz to 96 kHz.
Power consumption during stereo playback is 7 mW at 1.8V/1.5V supplies.
