| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Number of Elements | |
| Operating Temperature | |
| Quiescent Current | |
| SVHC Present | |
| Voltage | |
| Width |

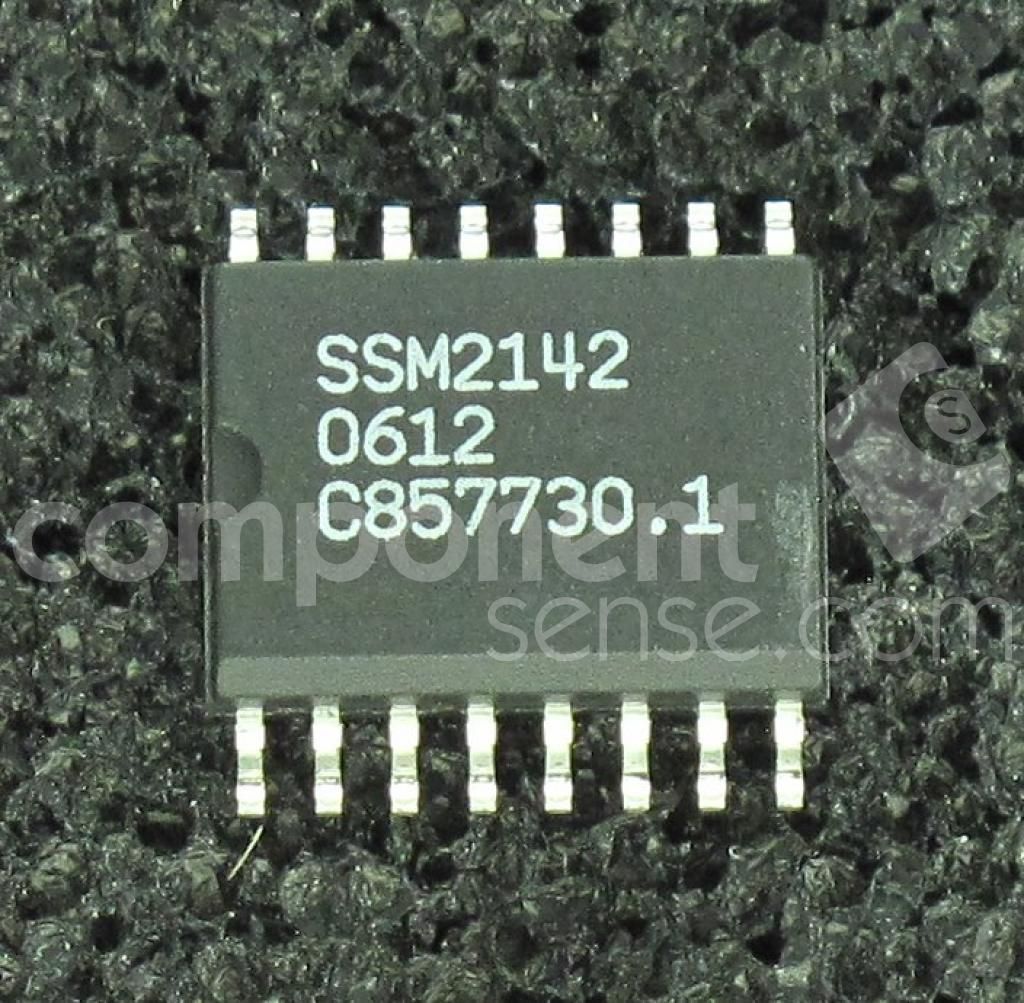

The SSM2142S from Analog Devices is a dual supply operational amplifier suitable for various audio applications. This component comes in a SOIC W package, designed for surface mount applications.
Key electrical characteristics include a voltage gain of 5.98dB and a power supply rejection ratio (PSRR) of 60dB. It operates with dual supply voltages ranging from 5V up to a maximum of 18V, with a typical operating supply voltage of 9V. The maximum supply current is rated at 5.5mA.
Designed for a wide range of environmental conditions, the SSM2142S operates between -40°C and 85°C. Its input resistance is 10kΩ. The component is also characterized by its number of channels (1) and number of elements (3).
Mechanical dimensions for the SOIC W package are a length of 10.5mm, width of 7.6mm, and height of 2.35mm. It is supplied in rail/tube packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SSM2142S operates at 5V, with a typical operating voltage of 9V and a maximum rating of 18V.
The component uses a surface-mount SOIC W package.
The device operates between -40°C and 85°C.
The maximum supply current is 5.5mA.
The power supply rejection ratio is 60dB.
