| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
275 pcs
|
275 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Rating DC |

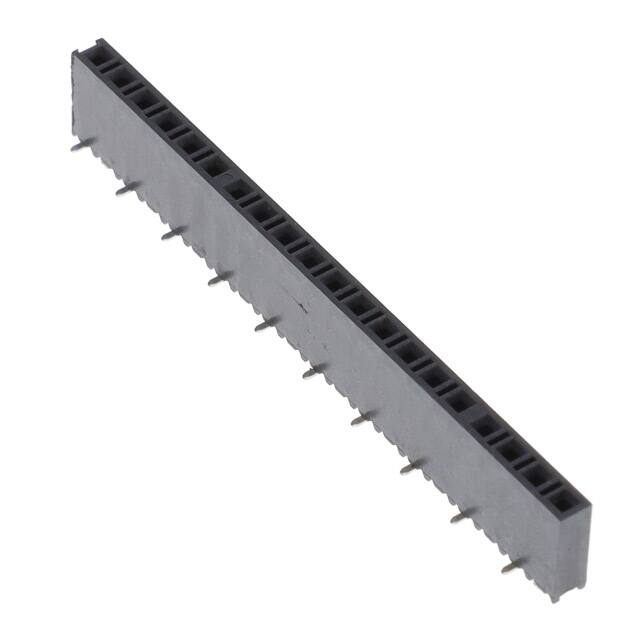

The Samtec SSM-120-S-SV-LC is a 20 position single row female socket receptacle designed for board-to-board or cable interconnection. The connector uses a push-pull fastening mechanism and includes a board lock for secure attachment.
Key electrical specifications include a current rating of 5.2A per contact and voltage ratings of 405VAC and 572VDC. The operating temperature range is -55°C to 125°C.
The connector is surface mount with solder termination and a 2.54mm pitch. The insulator is black and has a height of 7.37mm. Contacts are tin plated with a 30.0µin (0.76µm) finish.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.43 | $5.43 |
| 22+ | $4.51 | $4.51 |
| 55+ | $4.10 | $4.10 |
| 110+ | $4.07 | $4.07 |
| 506+ | $3.74 | $3.74 |
| 1,001+ | $3.51 | $3.51 |
| 2,508+ | $3.24 | $3.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions, all loaded, in a single row.
2.54mm (0.100 inch).
5.2A per contact.
405VAC and 572VDC.
Surface mount with solder termination.
-55°C to 125°C.
