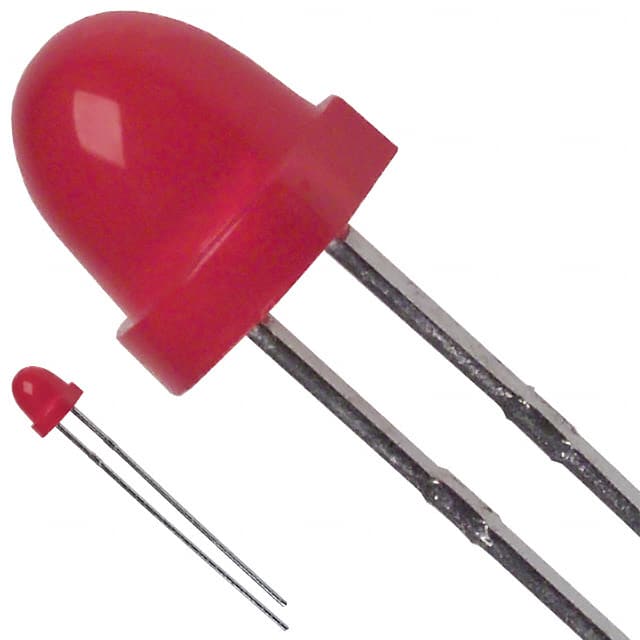

SSL-LX5063HD The Lumex SSL-LX5063HD is a red LED with a T-1 3/4 package. It operates at 2V with a 20mA forward current and offers a 5mcd luminous intensity.
Mfr Part #:

SSL-LX5063HD

Available from 1 distributors
Mfr Name: Lumex Opto/Components Inc.
Lumex Opto/Components Inc.
The Lumex SSL-LX5063HD is a red LED with a T-1 3/4 package. It operates at 2V with a 20mA forward current and offers a 5mcd luminous intensity.
✓ Total Stock: 848 pcs
$ Price Range: $0.06

SSL-LX5063HD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
848 pcs
On Request
848 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSL-LX5063HD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

SSL-LX5063HD Description

Short technical summary and product information.

This Lumex SSL-LX5063HD is a standard red LED designed for through-hole mounting. It features a T-1 3/4 package size with a diffused lens for even light distribution.



The LED operates with a typical forward current of 20mA and a forward voltage of 2V. Its luminous intensity is rated at 5mcd, with a wavelength of 700nm. The viewing angle is 60 degrees.



With a maximum operating temperature of +85°C and a minimum of -40°C, this LED is suitable for a range of environmental conditions. The lens dimensions are 5mm, and the overall height is a maximum of 6.00mm. It is supplied in bulk packaging.

SSL-LX5063HD Quick Information

Product Type: LED
Canonical Name: Lumex SSL-LX5063HD Red Diffused Through Hole LED
Subcategory: LEDs

SSL-LX5063HD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSL-LX5063HD Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSL-LX5063HD Features

  • Red diffused T-1 3/4 LED.
  • 20mA typical forward current.
  • 2V typical forward voltage.
  • 5mcd typical luminous intensity.
  • Through hole mounting style.

SSL-LX5063HD Applications

  • Used as indicator lights in electronic devices.
  • Suitable for status indication in control panels.
  • Ideal for low-current LED illumination applications.
  • Applicable in consumer electronics for visual signaling.
  • Used in educational kits for demonstrating LED operation.

SSL-LX5063HD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the forward current for the SSL-LX5063HD LED?

The typical forward current is 20 mA.

What is the forward voltage of the Lumex SSL-LX5063HD?

The typical forward voltage is 2 V.

What is the luminous intensity of the SSL-LX5063HD?

The typical luminous intensity is 5 mcd.

What is the wavelength of the SSL-LX5063HD LED?

The wavelength is 700 nm.

What is the viewing angle of this Lumex LED?

The typical viewing angle is 60 degrees.

What is the maximum operating temperature for the SSL-LX5063HD?

The maximum operating temperature is +85 °C.

What is the minimum operating temperature for the SSL-LX5063HD?

The minimum operating temperature is -40 °C.
