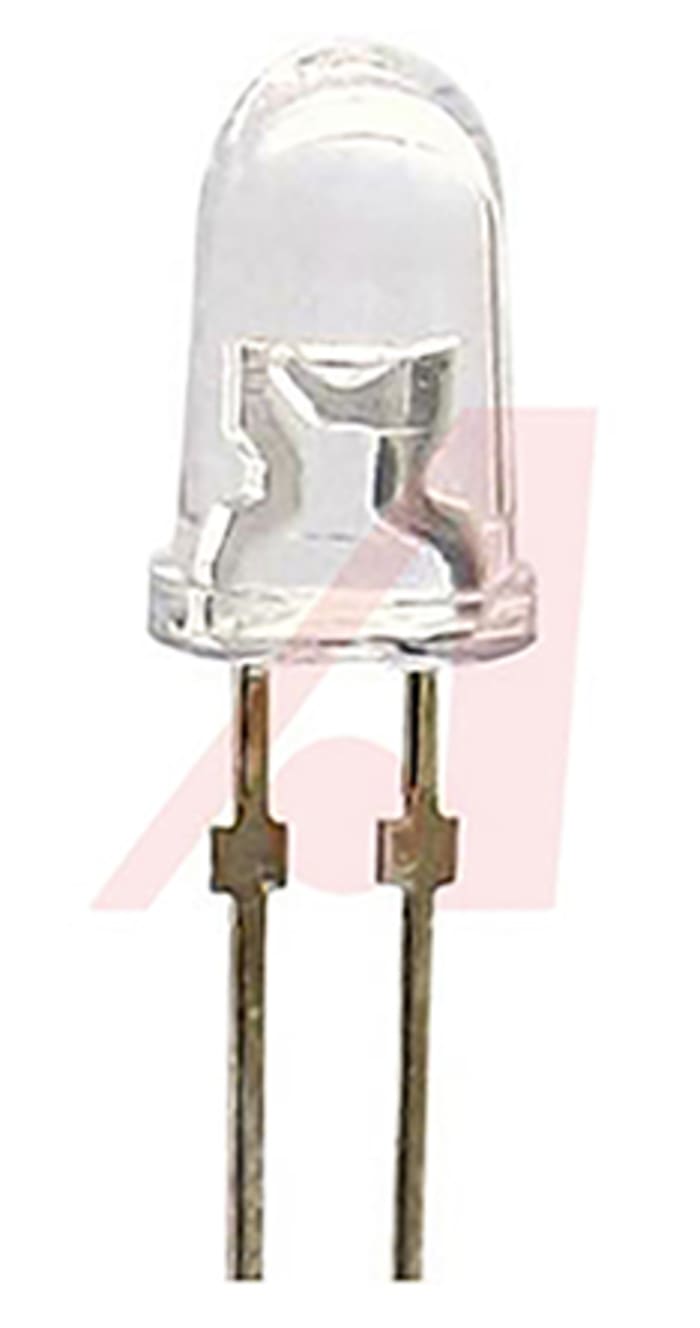

SSL-LX50595UPGC125 The Lumex SSL-LX50595UPGC125 is a green 5mm through-hole LED. It offers a dominant wavelength of 574nm and a luminous intensity of 5000mcd.
Mfr Part #:

SSL-LX50595UPGC125

Available from 1 distributors
Mfr Name: Lumex Opto/Components Inc.
Lumex Opto/Components Inc.
The Lumex SSL-LX50595UPGC125 is a green 5mm through-hole LED. It offers a dominant wavelength of 574nm and a luminous intensity of 5000mcd.
✓ Total Stock: 256 pcs
$ Price Range: $0.06

SSL-LX50595UPGC125 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
256 pcs
On Request
256 pcs On Request 1 On Request On Request NDC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSL-LX50595UPGC125 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Lead Spacing
Lens Color
Mounting Type
Operating Temperature
Peak Forward Current
Power Dissipation
Reverse Voltage
Storage Temperature
View Similar Products (0)

SSL-LX50595UPGC125 Description

Short technical summary and product information.

This Lumex SSL-LX50595UPGC125 is a discrete LED with a 5mm (T-1 3/4) package size. It emits a green light with a dominant wavelength of 574nm. The LED features a clear, dome-shaped lens and a through-hole mounting type.



Key electrical characteristics include a typical forward voltage of 3.4V and a typical forward current of 100mA. The luminous intensity is rated at 5000mcd with a typical viewing angle of 20 degrees. The absolute maximum ratings specify a peak forward current of 110mA and a continuous forward current of 35mA, with a maximum power dissipation of 125mW.



The operating temperature range for this LED is -30°C to +85°C, and its storage temperature range is -40°C to +100°C. It is designed for standard soldering processes, with a lead solder temperature limit of 260°C for 3 seconds.



The dimensions of the LED are 5mm in diameter and 8.6mm in height. This component is suitable for various indication applications where a reliable green LED is required.

SSL-LX50595UPGC125 Quick Information

Product Type: LED
Canonical Name: Lumex SSL-LX50595UPGC125 Green 5mm Through-Hole LED
Subcategory: Discrete LED

SSL-LX50595UPGC125 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSL-LX50595UPGC125 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSL-LX50595UPGC125 Features

  • Green 5mm through-hole LED
  • 574nm dominant wavelength
  • 5000mcd typical luminous intensity
  • 20° typical viewing angle
  • 100mA typical forward current

SSL-LX50595UPGC125 Applications

  • General purpose LED indication
  • Status indicator lights
  • Panel mount indicators
  • Electronic equipment displays

SSL-LX50595UPGC125 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the Lumex SSL-LX50595UPGC125 LED?

The typical forward voltage for the Lumex SSL-LX50595UPGC125 LED is 3.4V at 20mA.

What is the dominant wavelength of the Lumex SSL-LX50595UPGC125 LED?

The dominant wavelength of the Lumex SSL-LX50595UPGC125 LED is 574nm.

What is the luminous intensity of the Lumex SSL-LX50595UPGC125 LED?

The typical luminous intensity of the Lumex SSL-LX50595UPGC125 LED is 5000mcd.

What is the viewing angle of the Lumex SSL-LX50595UPGC125 LED?

The typical viewing angle of the Lumex SSL-LX50595UPGC125 LED is 20 degrees.

What is the operating temperature range for this LED?

The operating temperature range for the Lumex SSL-LX50595UPGC125 LED is -30°C to +85°C.

What package type is the Lumex SSL-LX50595UPGC125 LED?

The Lumex SSL-LX50595UPGC125 LED is a 5mm (T-1 3/4) through-hole component.
