| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
133 pcs
|
133 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

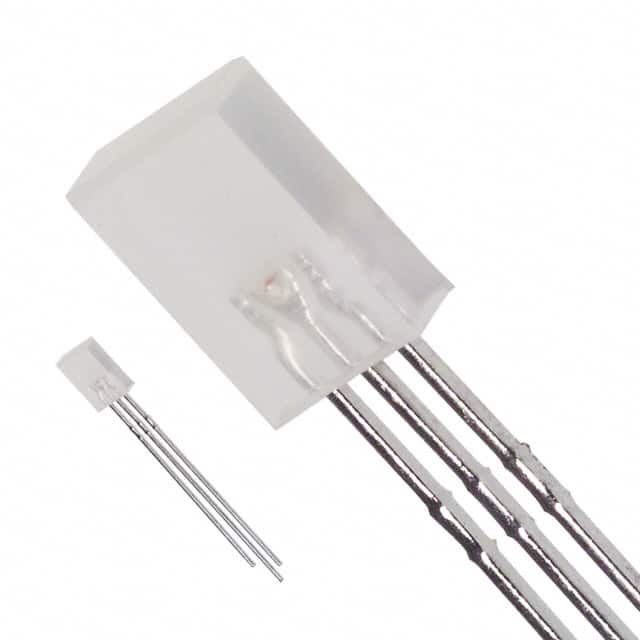

The Lumex Opto/Components Inc. SSL-LX2577IGW is a discrete dual-color LED, emitting both green and red light. It is designed for through-hole mounting and features a rectangular, diffused lens measuring 5.00mm x 2.00mm.
This LED operates with a forward voltage of 2.2V for green and 2V for red, drawing a typical current of 20mA for both colors. The luminous intensity is rated at 10mcd for both green and red light. The wavelength for green is 565nm and for red is 635nm, with a wide viewing angle of 90°.
Key electrical characteristics include a common cathode configuration. The LED has a maximum height of 7.00mm. It is specified with a RoHS3 compliant status and an MSL 1 rating.
This component is suitable for various indication applications where dual-color signaling is required. Its through-hole mounting makes it suitable for breadboarding and traditional PCB assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LED emits both green and red light.
The forward voltage is 2.2V for green light and 2V for red light.
The typical current rating is 20mA for both green and red light.
The luminous intensity is 10mcd for both green and red light.
This LED is designed for through-hole mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
