| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Resistance (Maximum @ After Environmental Tests) | |
| Contact Resistance (Maximum @ Initial) | |
| Contact Termination | |
| Pin or Socket | |
| Termination Style | |
| Wire Gauge |

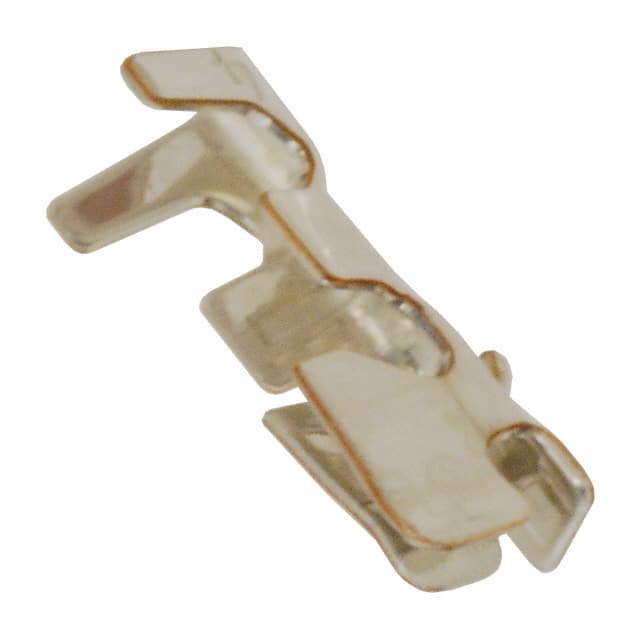

The SSH-003T-P0.2 is a crimp-type socket contact from JST Manufacturing, part of the SH connector series. It accommodates wire gauges from 28 to 32 AWG and features a tin contact finish. The contact is designed for use with JST SH series housings, providing a reliable and compact connection solution.
Electrical performance includes a maximum initial contact resistance of 10 mΩ, with a maximum of 15 mΩ after environmental testing. The contact is rated for use in low-profile, space-saving applications where secure wire termination is required.
The crimp termination style ensures a strong mechanical and electrical bond when used with the appropriate crimp tool. The socket contact is suitable for both discrete wire and mass termination applications within the SH connector system.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
| 10+ | $0.10 | $0.10 |
| 25+ | $0.08 | $0.08 |
| 100+ | $0.07 | $0.07 |
| 250+ | $0.06 | $0.06 |
| 1,000+ | $0.06 | $0.06 |
| 2,500+ | $0.05 | $0.05 |
| 5,000+ | $0.05 | $0.05 |
| 10,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SSH-003T-P0.2 accepts 28 to 32 AWG wire.
Initial contact resistance is 10 mΩ maximum; after environmental tests it is 15 mΩ maximum.
It uses a crimp termination style.
The contact finish is tin.
RoHS compliance is listed as RoHS3 compliant, but this is unverified.
