| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Length | |
| Country of Origin | |
| Current | |
| Failure Rate | |
| Material | |
| Maximum Pressure | |
| Minimum Liquid Specific Gravity | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Storage Temperature | |
| Switch Actuation Level | |
| Tape & Reel | |
| Type | |
| Voltage Rating |

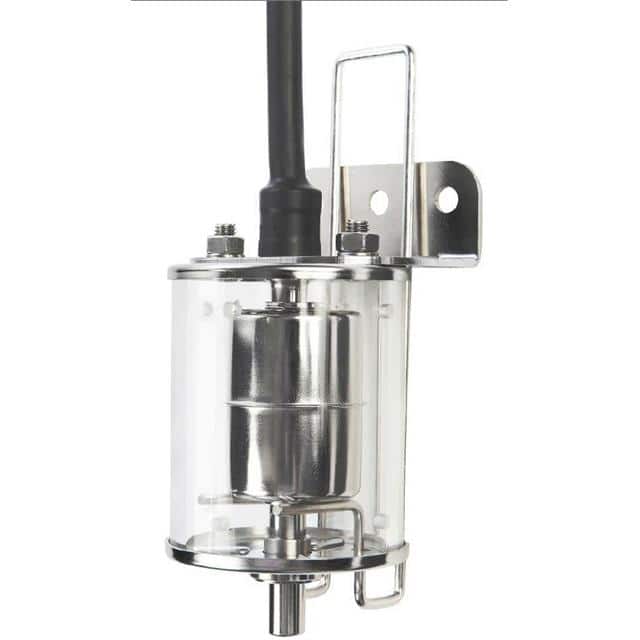

This Sensata / Cynergy3 SSF50 Series float switch is designed for industrial applications requiring reliable liquid level detection. It features a flange mounting type and is constructed from durable 304 and 316 stainless steel.
The switch offers a NO/NC output configuration and can handle a maximum AC voltage of 240V and a maximum DC voltage of 200V, with a maximum current rating of 500mA. The minimum liquid specific gravity required for operation is 0.8. The operating temperature range is up to 80°C, and it can withstand a maximum pressure of 20 bar.
With an integrated mounting bracket and a 1-meter cable, this float switch is easily configurable for N/O or N/C operation. It is suitable for use in various liquid environments, with a slosh guard to prevent accidental operation from turbulent fluids. The country of origin is China.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum AC voltage rating is 240V ac.
The maximum DC voltage rating is 200V dc.
The operating temperature is up to 80°C.
This float switch provides a SPST-NC/NO output configuration.
The maximum pressure is 20 bar.
