| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

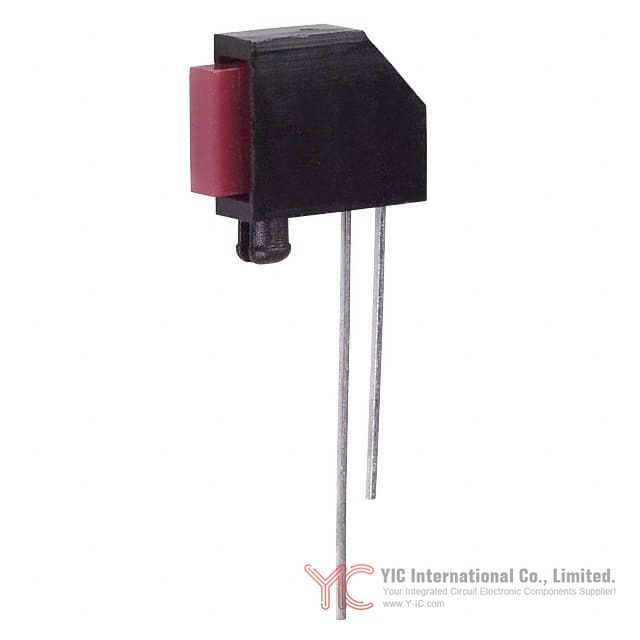

This Lumex SSF-LXH25780ID LED is a red indicator designed for circuit board applications. It features a diffused and tinted lens, providing a specific light output characteristic. The LED has a current rating of 20mA and a voltage rating of 2V, with a luminous intensity of 15mcd.
The mounting type is through-hole, with a right-angle orientation, making it suitable for specific PCB layouts. The lens measures 7.00mm x 2.50mm and offers a wide viewing angle of 110 degrees. The wavelength of the emitted light is 635nm.
This component is suitable for various indicator applications where a red light output is required. Its through-hole, right-angle form factor facilitates integration into populated circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the SSF-LXH25780ID LED is 2V.
The SSF-LXH25780ID LED has a current rating of 20mA.
The luminous intensity of the SSF-LXH25780ID LED is 15mcd.
The SSF-LXH25780ID LED is designed for Through Hole, Right Angle mounting.
The SSF-LXH25780ID LED is red.
