| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Emitted Color | |
| Forward Current | |
| Forward Voltage (Minimum/Typical/Maximum @ If=20 mA) | |
| Lens Finish | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Luminous Intensity | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Peak Wavelength | |
| Power Dissipation | |
| Reverse Voltage | |
| Soldering Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle | |
| Viewing Angle (Unspecified condition) | |
| Voltage Rating | |
| Wavelength |

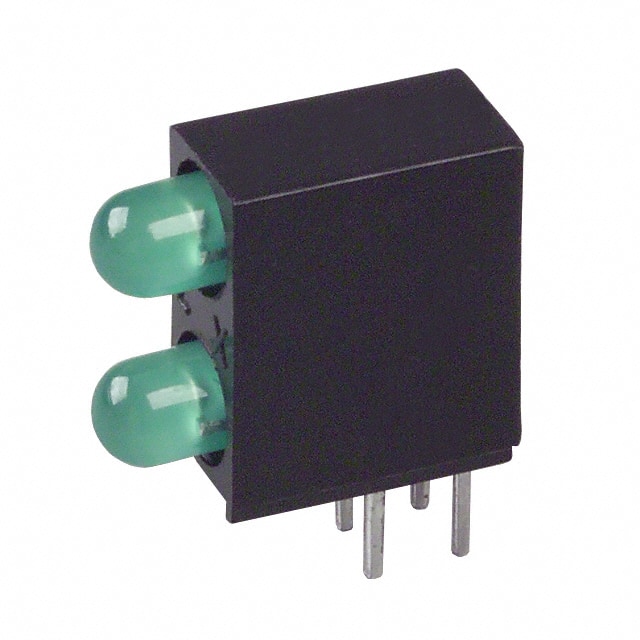

The Lumex Opto/Components Inc. SSF-LXH240GGD is a dual LED indicator designed for circuit board mounting. It features two green LEDs with a peak wavelength of 565nm and a diffused, tinted lens finish.
This component has a typical forward current of 20mA and a luminous intensity of 40mcd. The viewing angle is 60 degrees. The LED is housed in a round, domed top lens style with a 2.90mm diameter.
Designed for through-hole, right-angle mounting, the SSF-LXH240GGD operates within a temperature range of -40°C to +85°C. Absolute maximum ratings include a peak forward current of 150mA and a power dissipation of 105mW. The component is specified as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected, though these statuses are unverified.
This LED is suitable for applications requiring visual indication on a PCB, such as fault indicators or status lights.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak wavelength is 565 nm.
The typical forward voltage is 2.4V.
The typical luminous intensity is 40 mcd.
The typical viewing angle is 60 degrees.
It is mounted through hole, at a right angle.
The operating temperature range is -40°C to +85°C.
