SSF-LXH104GD
Lumex Opto/Components Inc.
The Lumex SSF-LXH104GD is a green 5mm LED designed for circuit board mounting. It features a right-angle through-hole configuration and a diffused, tinted lens.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

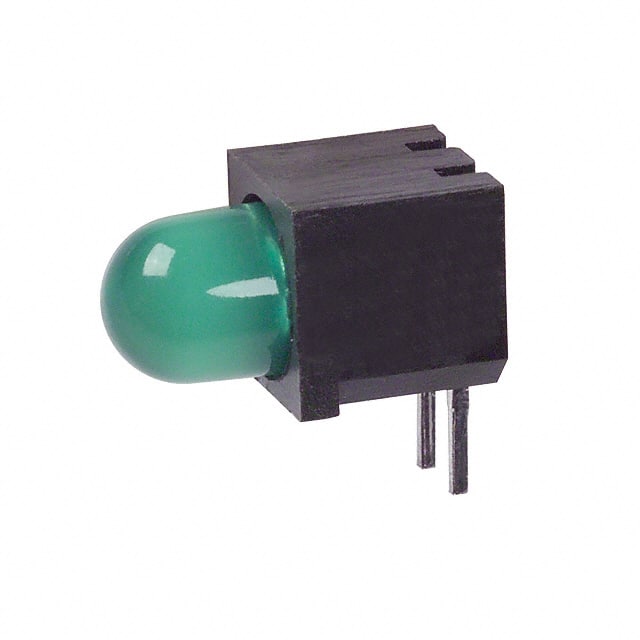

This Lumex Opto/Components Inc. SSF-LXH101GD-01 is a green LED indicator suitable for circuit board mounting. It features a 5mm diffused lens with a domed top, providing a wide viewing angle of 60 degrees. The LED operates at a forward voltage of 2.2V and draws a current of 20mA, with a luminous intensity of 30mcd.
Designed for through-hole, right-angle mounting, this component is ideal for applications requiring compact indicator lights on PCBs. The green color and specific wavelength of 565nm make it suitable for status indication and other visual signaling purposes. Its compact size and reliable performance make it a versatile choice for various electronic designs.
The LED has a wavelength of 565nm and a luminous intensity of 30mcd. It is specified with a current rating of 20mA and a voltage rating of 2.2V. The lens is diffused and tinted, measuring 5mm in diameter.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.2V.
The lens style is domed top, diffused, and tinted.
The luminous intensity is 30 millicandelas.
The viewing angle is 60 degrees.
The LED is green.
