| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
124 pcs
|
124 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-04-29 07:15:11 |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

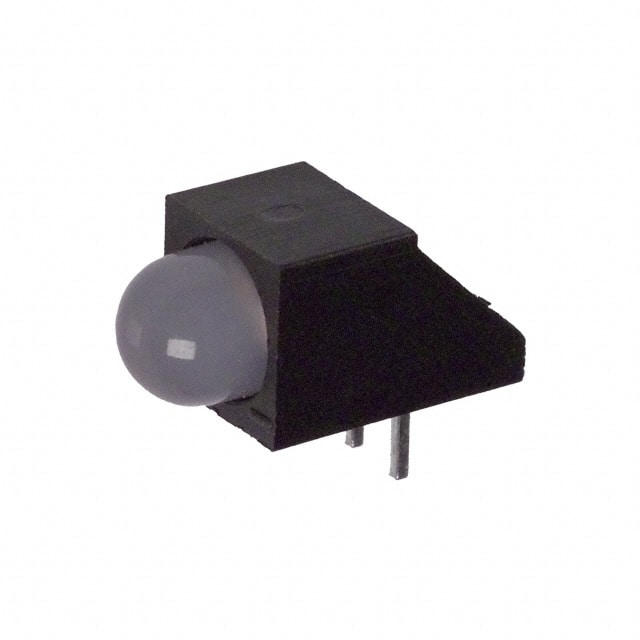

The Lumex Opto/Components Inc. SSF-LXH100HGW is a bicolor LED indicator designed for circuit board mounting. This component emits both red and green light, with typical forward currents of 25mA for each color. The luminous intensity is rated at 20mcd for green and 6mcd for red.
Featuring a 5mm diffused lens with a domed top, the SSF-LXH100HGW has a typical viewing angle of 60 degrees. The forward voltage is 2.2V for green and 2V for red. The LED is designed for through-hole, right-angle mounting, making it suitable for various PCB applications.
This LED is specified with a RoHS3 compliant status and an MSL of 1, indicating unlimited shelf life under standard conditions. Its compact size and bicolor capability make it a versatile choice for status indication and visual feedback in electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SSF-LXH100HGW LED emits both red and green light.
The typical forward current for the SSF-LXH100HGW LED is 25mA for both green and red.
The forward voltage is 2.2V for green and 2V for red.
The luminous intensity is 20mcd for green and 6mcd for red.
The typical viewing angle of the SSF-LXH100HGW LED is 60 degrees.
The SSF-LXH100HGW LED is mounted using a through-hole, right-angle method.
