| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Force | |
| Terminal Type |

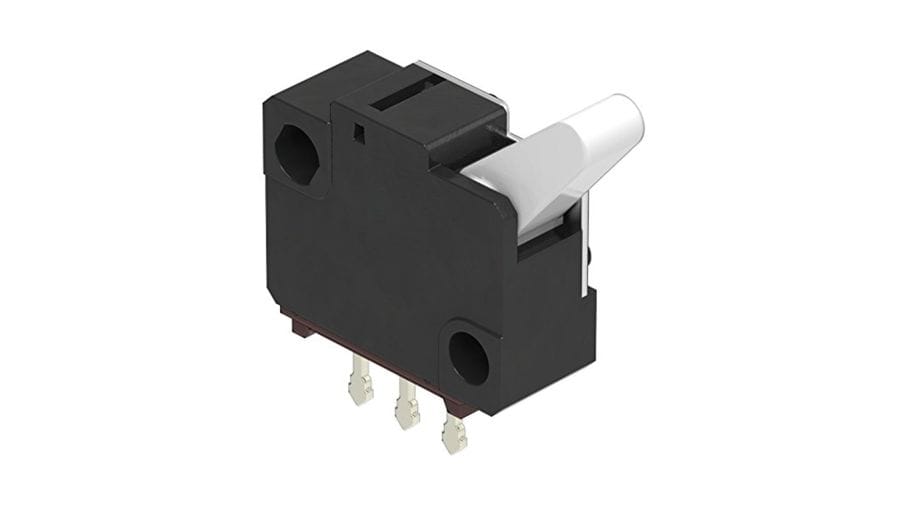

The Alps Alpine SSCTL10400 is a micro switch from the SSCT Series, designed for reliable performance in demanding applications. This component is suitable for automotive use, specifically in applications like hood latches.
Key electrical specifications include a maximum rating of 0.1A at 12V DC and a minimum rating of 50μA at 3V DC. The switch offers a contact resistance of 200mΩ maximum initially and 500mΩ maximum after its operating life. It is rated for 10,000 cycles of operation, both with and without load.
Mechanically, the SSCTL10400 has an operating force of 0.7±0.3N. Its dimensions are 12.5mm in width, 5.0mm in depth, and 11.5mm in height. The switch is designed for panel mounting with lead wiring terminals, offering a practical solution for integration into various systems.
This micro switch is built to perform over a wide operating temperature range, though specific details should be confirmed with formal specifications. It is recommended for new designs and is mass-produced.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 12V DC at 0.1A for resistive loads.
The operating life is rated for 10,000 cycles without load and 10,000 cycles with load.
The operating force is 0.7±0.3N.
The dimensions are 12.5mm in width, 5.0mm in depth, and 11.5mm in height.
It is mountable on panels with screws.
It has lead terminals.
