| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
975 pcs
|
975 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Resistance | |
| Operating Force | |
| Tape Width |

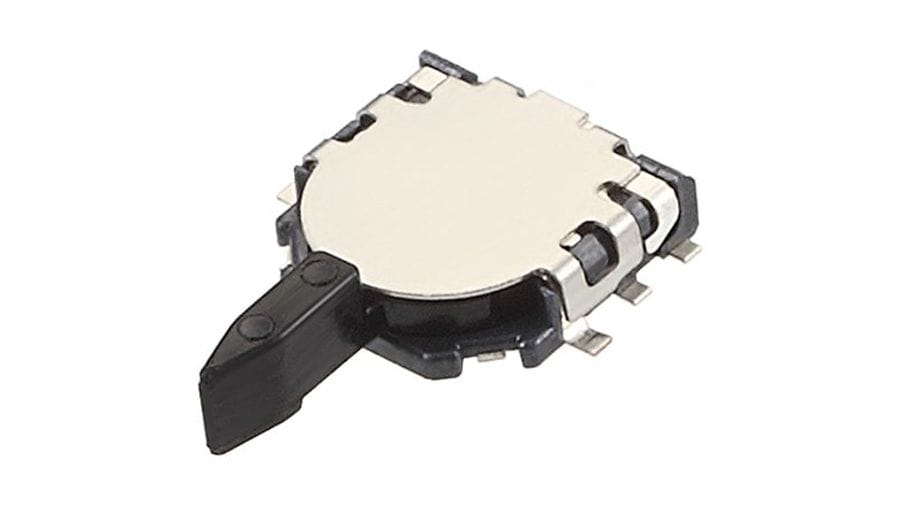

The Alps Alpine SSCQ110100 is a detector switch belonging to the SSCQ series, known for its compact size and two-stage detection capabilities. This switch is approximately 30% smaller than conventional products, making it one of the smallest in its class. It is rated for a maximum of 1mA at 5V DC and has a minimum rating of 50μA at 3V DC. The contact resistance is a maximum of 2Ω initially and 5Ω after its operating life. The SSCQ110100 boasts an operating life of 50,000 cycles, both with and without load. It features an operating force of 0.35N maximum and a total travel position of 3.73mm. The dimensions of the switch are 3.8mm in width, 3.6mm in depth, and 0.9mm in height. This detector switch is suitable for applications in Audio/TV and Cameras.
The SSCQ110100 is supplied in a standard package of 4,000 pieces per reel, with a tape width of 16mm. It is classified as RoHS3 Compliant, REACH Unaffected, and has an MSL rating of 1 Unlimited. The product is currently in the 'Standard' supply status, meaning it is mass-produced and recommended for new designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 1mA at 5V DC.
The minimum current rating is 50μA at 3V DC.
The initial contact resistance is a maximum of 2Ω.
The operating life is 50,000 cycles without load and 50,000 cycles with load.
The maximum operating force is 0.35N.
The dimensions are 3.8mm (width) x 3.6mm (depth) x 0.9mm (height).
The standard package quantity is 4,000 pieces.
