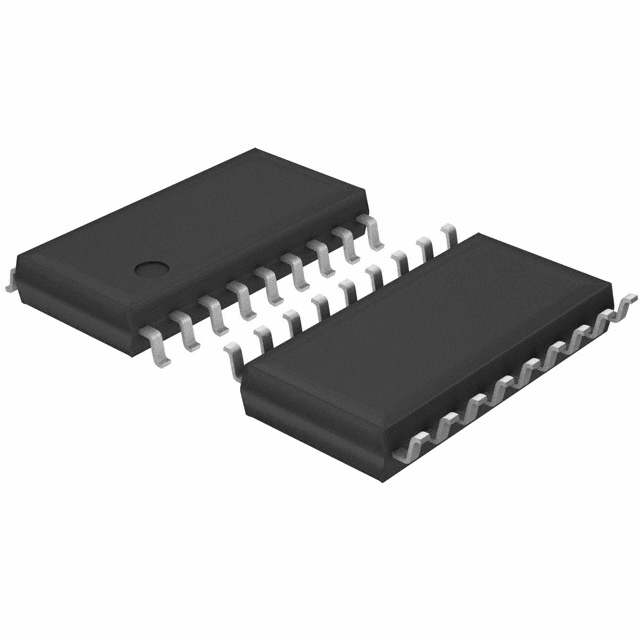

The Sanken SSC9522S is an integrated circuit designed for AC DC conversion and offline switching applications. It features a Half-Bridge topology and operates within a voltage range of 9.8V to 35V, with a frequency capability from 28.3kHz to 300kHz. The device is specified for an operating temperature range of -20°C to 85°C (TA).
This component is housed in an 18-SOP package and supports surface mount installation. It includes control features such as soft start and offers fault protection against current limiting, overload, over temperature, and over voltage conditions. The output is isolated.
Key electrical characteristics include its operating voltage and frequency. The surface mountable 18-SOP package makes it suitable for various PCB designs. Its fault protection mechanisms enhance system reliability in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SSC9522S operates from 9.8V to 35V.
The switching frequency range is 28.3kHz to 300kHz.
The operating temperature range is -20°C to 85°C.
The SSC9522S is available in an 18-SOP surface-mount package.
No, the SSC9522S does not have internal switches.
The SSC9522S includes current limiting, overload, over-temperature, and over-voltage protection.
