| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,221 pcs
|
1221 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature Range | |
| Positions | |
| SVHC Present | |
| Tape Width |

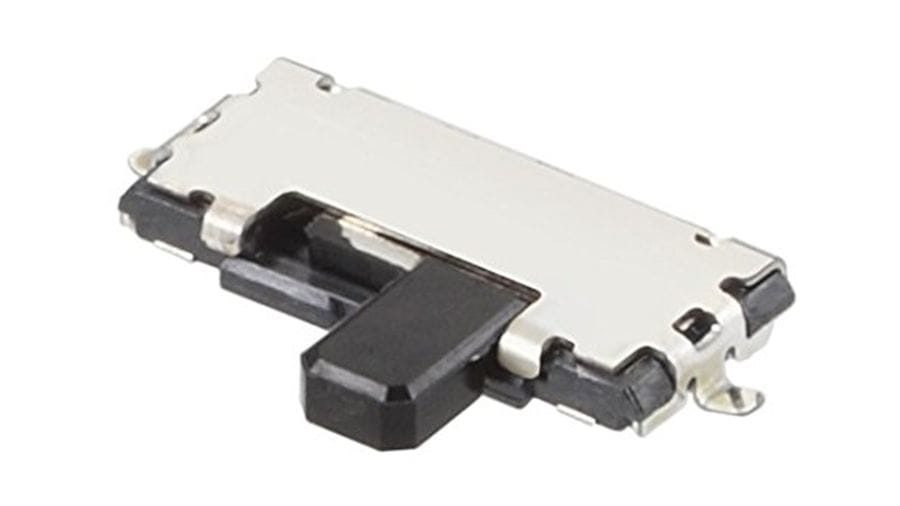

The Alps Alpine SSAJ120100 is a surface mount slide switch from the SSAJ Series, designed for compact applications with a body height of only 0.7mm. It offers a travel distance of 1.4mm, with 1 pole and 2 positions.
This switch is rated for resistive loads up to 10mA at 5V DC and down to 50μA at 3V DC. It exhibits an initial contact resistance of 300mΩ max., increasing to 500mΩ max. after its rated operating life of 10,000 cycles with or without load. The operating force is specified as 1.5±1N.
With dimensions of 2.5x5.5x0.7mm, the SSAJ120100 is suitable for integration into space-constrained devices. It operates within a temperature range of -10°C to +60°C. The switch is designed for reflow soldering processes.
Applications for this series include mobile devices like smartphones and tablets, wearables, notebooks, and peripherals. It is also used in energy and industrial equipment, gaming consoles, and audio/video devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SSAJ120100 slide switch is rated for a maximum of 10mA at 5V DC and a minimum of 50μA at 3V DC.
The initial contact resistance is 300mΩ maximum, and after its lifetime, it is 500mΩ maximum.
The operating life is 10,000 cycles, both with and without load.
The dimensions are 2.5mm in width, 5.5mm in depth, and 0.7mm in height.
The operating temperature range is from -10°C to +60°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
