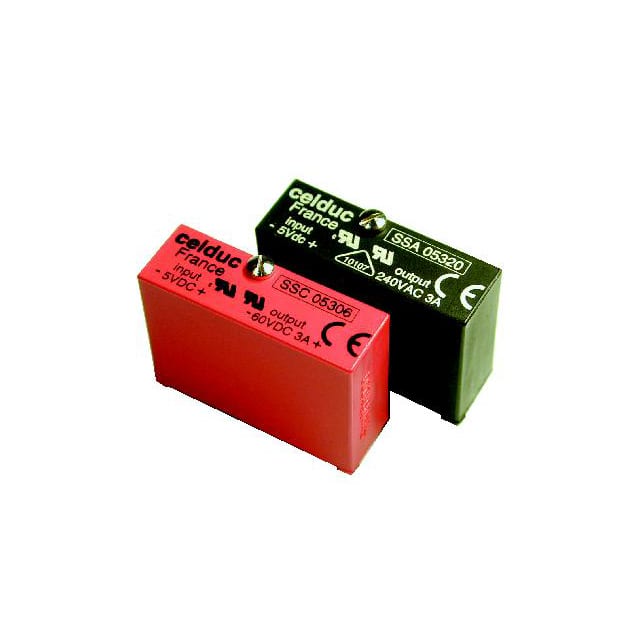

SSA05320 The Celduc Inc. SSA05320 is an AC solid-state output module designed for 3A loads up to 280VAC. It operates with a 5VDC control voltage and features UL approval.
Mfr Part #:

SSA05320

Available from 1 distributors
Mfr Name: Celduc Inc.
Celduc Inc.
The Celduc Inc. SSA05320 is an AC solid-state output module designed for 3A loads up to 280VAC. It operates with a 5VDC control voltage and features UL approval.
✓ Total Stock: 15 pcs
$ Price Range: $2.00

SSA05320 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSA05320 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Features
Operating Temperature
Output Voltage
Storage Temperature
Style
Tape & Reel
Turn Off Time
Turn On Time
Type
Voltage
Weight
View Similar Products (0)

SSA05320 Description

Short technical summary and product information.

The Celduc Inc. SSA05320 is an AC solid-state output module with a nominal output current of 3A and an operating voltage range of 12 to 280VAC. It is controlled by a 5VDC input.



Key electrical specifications include a fast turn-on and turn-off time of 10ms, a low on-state voltage drop of 1.6VDC at 3A, and an off-state leakage current of 1mARMS. The module operates within a frequency range of 47 to 63Hz and has a high input-output isolation voltage of 4000VRMS.



This module is UL approved and features a status LED. It operates within a temperature range of -40 to +90°C and has a storage temperature range of -40 to +150°C. The module weighs 30g.



It is suitable for various industrial control applications requiring reliable AC switching.

SSA05320 Quick Information

Product Type: AC Output Module
Canonical Name: Celduc Inc. SSA05320 AC Solid State Output Module
Subcategory: AC Output Module

SSA05320 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSA05320 Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSA05320 Features

  • 3A nominal output current at 280VAC.
  • 5VDC control voltage input.
  • 12-280VAC operating voltage range.
  • 10ms turn-on and turn-off times.
  • UL approved for safety and reliability.

SSA05320 Applications

  • Used in industrial automation systems.
  • Suitable for AC load switching.
  • Ideal for control panel applications.
  • Reliable for general purpose switching.

SSA05320 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the SSA05320?

The SSA05320 has an operating voltage range of 12 to 280 VAC.

What is the control voltage for the SSA05320?

The control voltage for the SSA05320 is 5 VDC.

What is the nominal output current of the SSA05320?

The nominal output current for the SSA05320 is 3 ARMS.

What is the operating temperature range of the SSA05320?

The operating temperature range for the SSA05320 is -40 to +90 °C.

Is the SSA05320 UL approved?

Yes, the SSA05320 is UL approved.
