| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Heat Deflection Temperature | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Size Range | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

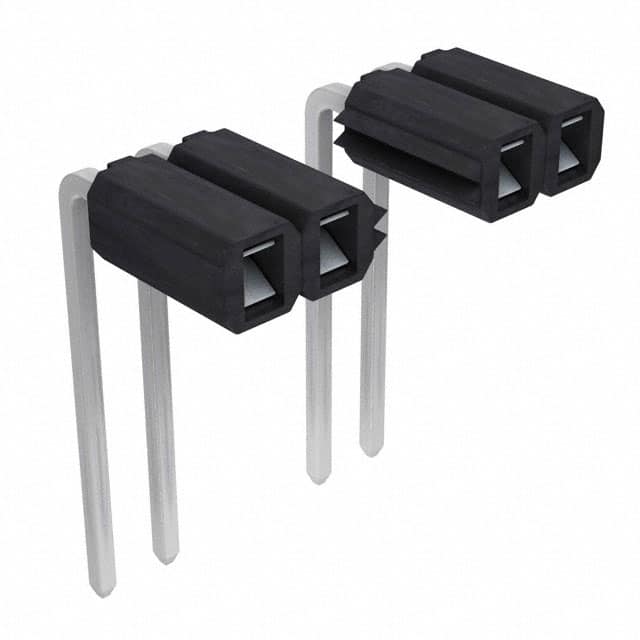

The Samtec SSA-132-W-T-RA is a 32-position right-angle wire wrap receptacle from the SSA series. It is designed for board-to-board applications and features a push-pull fastening mechanism. The connector has a single row of 32 positions with a 2.54mm (0.100") pitch.
The contacts are made of phosphor bronze with a matte tin finish, and the insulator is black PET polyester with a heat deflection temperature of 215°C. The operating temperature range is -55°C to +105°C for tin plating. The connector is rated for 1000V dielectric withstanding voltage. It is RoHS compliant and lead-free solderable (wave only).
The right-angle orientation and wire wrap termination make this connector suitable for applications requiring compact board-to-board connections with easy prototyping or rework. The breakaway design allows for custom length configurations. The standoffs facilitate easy board cleaning.
Mounting type is through hole, right angle. The contact length is 14.61mm (0.575") and insulation height is 2.54mm (0.100"). The connector mates with Samtec TS, HTS, BBS, BBL, and BHS series.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.49 | $3.49 |
| 25+ | $3.27 | $3.27 |
| 100+ | $3.05 | $3.05 |
| 500+ | $2.69 | $2.69 |
| 1,000+ | $2.58 | $2.58 |
| 2,500+ | $2.32 | $2.32 |
| 5,000+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 positions, all loaded.
2.54mm (0.100").
1000V dielectric withstanding voltage.
Through hole, right angle with wire wrap termination.
-55°C to +105°C for tin plating.
UL94 V-0.
Phosphor bronze contacts with tin plating; black PET polyester insulator.
