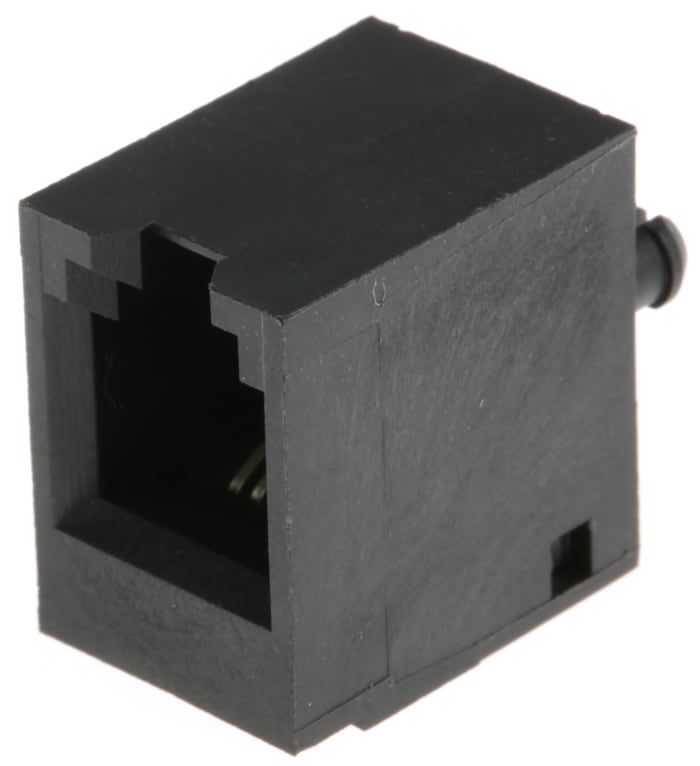

SS6544-NF The Stewart Connector SS-6544-NF is an RJ22 connector with a female gender and through-hole mounting. It features an unshielded, straight orientation and is rated Category 4.
Mfr Part #:

SS6544-NF

Available from 1 distributors
Mfr Name: Stewart Connector
Stewart Connector
The Stewart Connector SS-6544-NF is an RJ22 connector with a female gender and through-hole mounting. It features an unshielded, straight orientation and is rated Category 4.
✓ Total Stock: 21 pcs
$ Price Range: $1.00

SS6544-NF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SS6544-NF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Material
Contact Plating
Country of Origin
Depth
Failure Rate
LED
Length
Mounting Type
Number of Ports
Orientation
Shield Type
Width
View Similar Products (0)

SS6544-NF Description

Short technical summary and product information.

This RJ22 connector from Stewart Connector, part number SS-6544-NF, is designed for networking and communication applications. It features a female gender and a through-hole mounting type, with a straight orientation. The connector has 4 ways and is unshielded, with solder termination. It is rated as Category 4.



Constructed with a copper alloy contact material and gold plating, this modular jack offers reliability for PCB mounting. The dimensions are 11.56mm in length, 16.51mm in width, and 16.51mm in depth. It is suitable for applications requiring standard RJ22 connectivity.



Stewart Connector's SS-65 Series data sockets conform to the FCC68 specification and are compatible with data plugs. This particular model, SS-6544-NF, is a highly reliable and excellent quality component for various electronic designs.

SS6544-NF Quick Information

Product Type: RJ22 Connector
Series: SS-65
Canonical Name: Stewart Connector SS-65 Series RJ22 Connector, Female, Through Hole, Unshielded, Straight, 1 Port, 4 Way
Subcategory: Modular Connector Jacks

SS6544-NF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SS6544-NF Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SS6544-NF Features

  • RJ22 connector with female gender.
  • Through hole mounting type.
  • Unshielded straight orientation.
  • 4-way modular jack.
  • Category 4 rated.

SS6544-NF Applications

  • Used in networking applications.
  • Suitable for communication systems.
  • PCB mounting data sockets.
  • Compatible with data plugs.

SS6544-NF FAQs

7 frequently asked questions generated from this part’s specifications.
What type of connector is the SS-6544-NF?

The SS-6544-NF is an RJ22 connector.

What is the mounting type for the SS-6544-NF?

The mounting type is Through Hole.

How many ways does the SS-6544-NF connector have?

The connector has 4 ways.

What is the shield type of the SS-6544-NF?

The shield type is Unshielded.

What is the termination type for this connector?

The termination type is Solder.

What is the contact material and plating?

The contact material is Copper Alloy with Gold plating.

What category is the SS-6544-NF rated for?

It is rated as Category 4.
