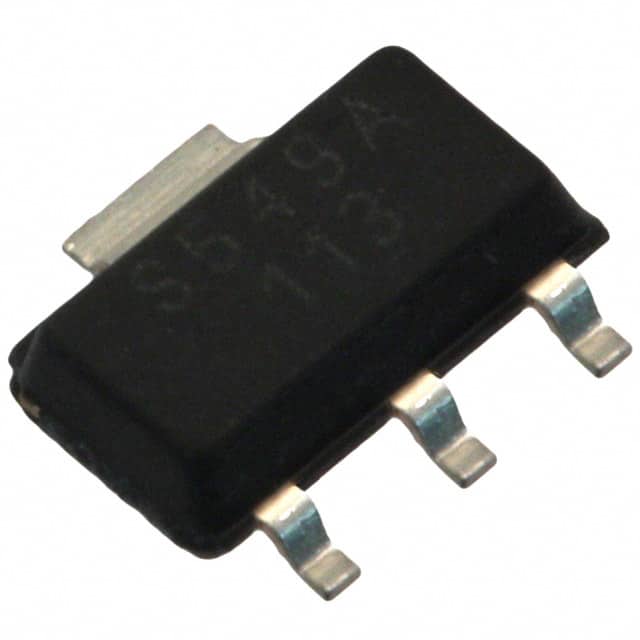

SS543AT The Honeywell SS543AT is a Hall Effect unipolar magnetic switch with an open collector output. It operates over a wide voltage range and features temperature compensation.
Mfr Part #:

SS543AT

Available from 3 distributors
Mfr Name: Honeywell
Honeywell
The Honeywell SS543AT is a Hall Effect unipolar magnetic switch with an open collector output. It operates over a wide voltage range and features temperature compensation.
✓ Total Stock: 13,628 pcs
$ Price Range: $0.14

SS543AT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
7,000 pcs
On Request
7000 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,628 pcs
On Request
1628 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SS543AT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Features
Function
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Output Type
Polarization
Sensing Range
Supplier Device Package
Tape & Reel
Technology
Test Condition
Voltage
Voltage Supply
View Similar Products (0)

SS543AT Description

Short technical summary and product information.

The Honeywell SS543AT is a solid-state magnetic sensor designed as a unipolar Hall Effect switch. It features an open collector output type and is specified for operation with a supply voltage ranging from 3.8V to 30V.



This sensor is temperature compensated, ensuring reliable performance across its operating temperature range of -40°C to 150°C. The sensing range is defined by a 18mT trip point and a 7.5mT release point. The device requires a supply current of up to 10mA and can provide an output current of up to 50mA.



Packaged in a SOT-89B (TO-243AA, Variant) surface-mount package, the SS543AT is suitable for various electronic designs. It is polarized for South Pole sensing.



Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status. The SS543AT is suitable for applications requiring precise magnetic field detection and switching.

SS543AT Quick Information

Product Type: Magnetic Switch
Series: SS5
Canonical Name: Honeywell SS543AT Hall Effect Unipolar Switch
Subcategory: Solid State Magnetic Sensor

SS543AT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SS543AT Estimated Pricing

Qty Low High
1+ $0.14 $0.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

SS543AT Features

  • Hall Effect unipolar switch technology.
  • Wide 3.8V to 30V supply voltage range.
  • Temperature compensated for reliable operation.
  • Open collector output type.
  • Surface mount SOT-89B package.

SS543AT Applications

  • Position sensing applications.
  • Speed detection systems.
  • Limit switches.
  • Proximity detection.

SS543AT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the SS543AT?

The SS543AT operates with a supply voltage ranging from 3.8V to 30V.

What is the operating temperature range of the SS543AT?

The operating temperature range for the SS543AT is -40°C to 150°C (TA).

What type of output does the SS543AT have?

The SS543AT features an Open Collector output type.

What is the sensing range of the SS543AT?

The sensing range for the SS543AT is 18mT for trip and 7.5mT for release.

What package is the SS543AT supplied in?

The SS543AT is supplied in a SOT-89B package, also referred to as TO-243AA, Variant.
