| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Function | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Polarization | |
| Sensing Range | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Test Condition | |
| Voltage |
The Honeywell SS513AT is a bipolar Hall effect switch designed for various sensing applications. It features temperature compensation for stable operation across its wide temperature range of -40°C to 150°C.
This device operates with a supply voltage from 3.8V to 30V and draws a current of 10mA. The sensing range is ±14mT, with a trip point of 14mT and a release point of -14mT. The output type is open collector.

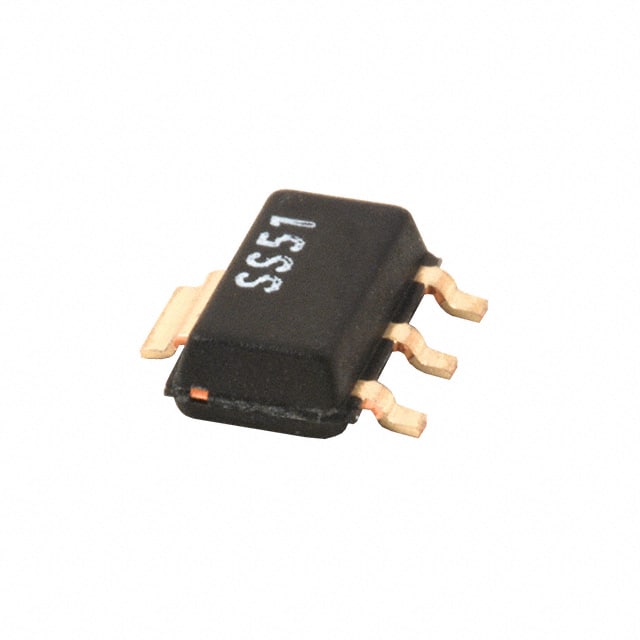

Packaged in a SOT-89 (TO-243AA, Variant) surface mount configuration, the SS513AT is suitable for integration into compact electronic designs. Its polarization supports both North and South pole detection, making it a versatile component for position sensing and speed detection.
Key specifications include a sensing range of 14mT Trip and -14mT Release, and an operating temperature from -40°C to 150°C. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the SS513AT is 3.8V to 30V.
The SS513AT operates in a temperature range of -40°C to 150°C.
The SS513AT is supplied in a SOT-89 surface mount package.
The SS513AT is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the SS513AT is 1 Unlimited.
