| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Timing | |
| Current Rating (Amps) | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

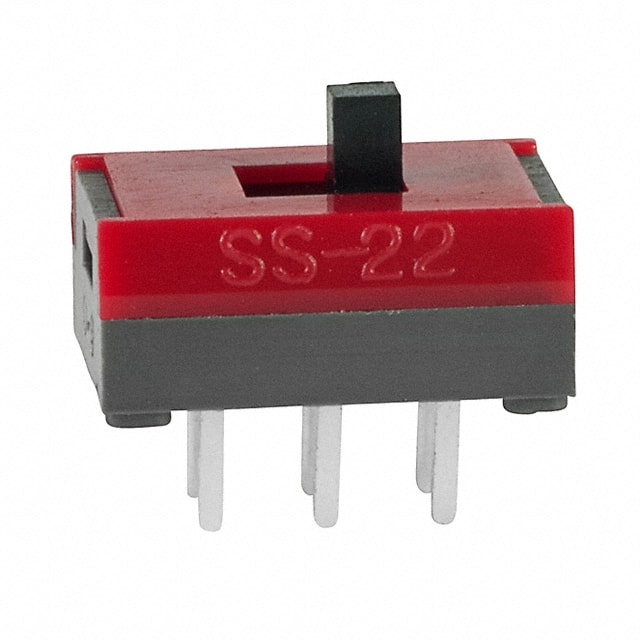

The NKK Switches SS22SDP2 is a slide switch designed for various electronic applications. It features a Double Pole Double Throw (DPDT) circuit configuration, suitable for switching two independent circuits simultaneously.
This switch is rated for a maximum current of 100mA (DC) and an operating voltage of 30V. The actuator is standard in type and has a length of 2.00mm. The contact timing is specified as Shorting (MBB), meaning the contacts are made before they are broken during actuation.
Designed for through-hole mounting, the SS22SDP2 utilizes PC pin termination for secure connections. The contact material is phosphor bronze with a silver contact finish, ensuring reliable conductivity. The operating temperature range for this switch is from -15°C to 60°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SS22SDP2 slide switch has an operating voltage rating of 30V.
The SS22SDP2 slide switch is rated for 100mA (DC).
The SS22SDP2 slide switch features a DPDT circuit.
The SS22SDP2 slide switch is designed for through-hole mounting.
The SS22SDP2 slide switch operates within a temperature range of -15°C to 60°C.
