| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,999 pcs
|
8999 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

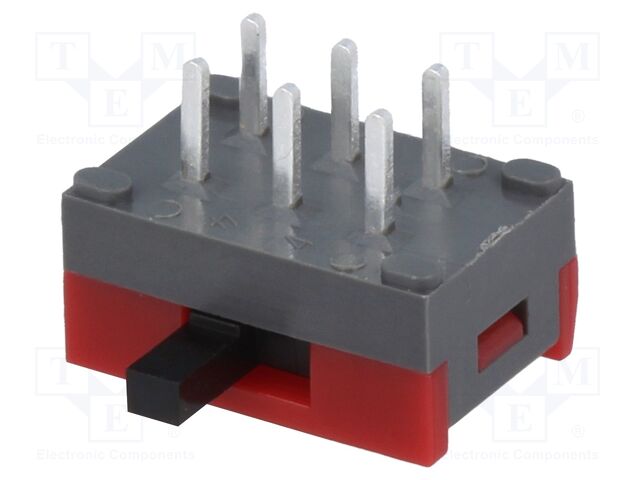

This NKK Switches SS22SDH2 is a slide switch designed for various electronic applications. It features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control. The switch is rated for 0.1A at 30V DC and operates with an ON-ON switching method.
The compact body dimensions of 10x6x4mm and side mounting make it suitable for space-constrained designs. The switch offers a minimum insulation resistance of 0.1 GΩ and a contact resistance of 20 mΩ. It has an electrical life and mechanical durability of 10,000 cycles.
Operating within a temperature range of -15°C to 60°C, the SS22SDH2 is constructed with a Phosphor Bronze contact material and Silver contact finish. It is RoHS3 compliant, has an MSL of 1, and is REACH unaffected, indicating adherence to environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NKK Switches SS22SDH2 has a DC contacts rating of 0.1A / 30V DC.
The NKK Switches SS22SDH2 is a slide switch with a DPDT contact configuration and ON-ON switching function.
The body dimensions of the NKK Switches SS22SDH2 are 10x6x4mm.
The operating temperature range for the SS22SDH2 is -15°C to 60°C.
Yes, the NKK Switches SS22SDH2 is RoHS3 Compliant.
