| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diode Type | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Speed |

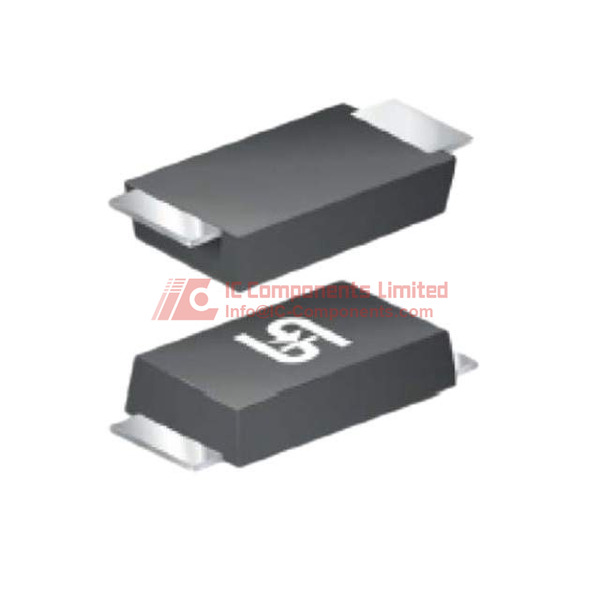

The SS14LWHRVG from Taiwan Semiconductor is a Schottky diode in a surface-mount SOD123W package. This component is designed for rectification and offers a maximum reverse voltage of 40V and an average rectified current of 1A. Its forward voltage is a maximum of 550mV at 1A, and the reverse leakage current is 100µA at 40V.
With a junction operating temperature range of -55°C to 150°C, the SS14LWHRVG is suitable for various electronic applications. The diode type is Schottky, and it is characterized by fast recovery speed. The component is housed in a compact SOD123W package, making it ideal for space-constrained designs. It is mounted using a surface mount technique.
This diode is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is also designated as Lead Free and REACH Unaffected. The SS14LWHRVG is a reliable choice for power supply circuits, switching applications, and general-purpose rectification where efficiency and low forward voltage drop are important.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SS14LWHRVG has a maximum DC reverse voltage rating of 40V.
The SS14LWHRVG can handle an average rectified current of 1A.
The maximum forward voltage drop for the SS14LWHRVG at 1A is 550mV.
The SS14LWHRVG is a Schottky diode.
The SS14LWHRVG operates between -55°C and 150°C.
The SS14LWHRVG is supplied in a SOD123W package.
The SS14LWHRVG is designed for surface mount installation.
