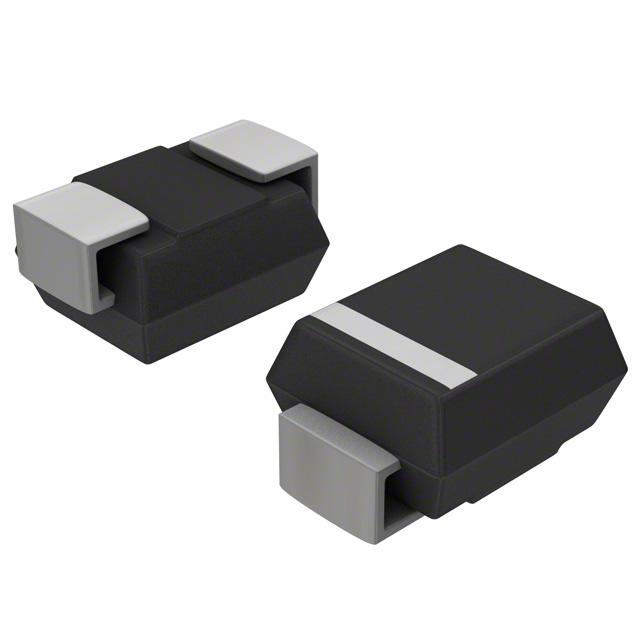

SS14A-F1-0000HF The SS14A-F1-0000HF is a Schottky diode from Yangzhou Yangjie Electronic Technology Co.,Ltd. It offers a 1A average rectified current and a maximum reverse voltage of 40V.
Mfr Part #:

SS14A-F1-0000HF

Available from 1 distributors
Mfr Name: Yangzhou Yangjie Electronic Technology Co.,Ltd
Yangzhou Yangjie Electronic Technology Co.,Ltd
The SS14A-F1-0000HF is a Schottky diode from Yangzhou Yangjie Electronic Technology Co.,Ltd. It offers a 1A average rectified current and a maximum reverse voltage of 40V.
✓ Total Stock: 4,050 pcs

SS14A-F1-0000HF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,050 pcs
On Request
4050 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SS14A-F1-0000HF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Diode Type
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
Package / Case
SVHC Present
Speed
Supplier Device Package
Tape & Reel
View Similar Products (0)

SS14A-F1-0000HF Description

Short technical summary and product information.

The SS14A-F1-0000HF is a Schottky diode manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. This component is designed for applications requiring efficient rectification, featuring an average rectified current of 1A and a maximum DC reverse voltage of 40V.



Key electrical characteristics include a maximum forward voltage of 500 mV at 1A and a reverse leakage current of 500 µA at 40V. The diode operates within a junction temperature range of -55°C to 125°C. It is housed in a DO-214AC (SMA) package, suitable for surface mounting.



This diode is specified with a fast recovery speed. It is compliant with RoHS3 standards and is REACH unaffected. The product is supplied in Tape & Reel packaging.

SS14A-F1-0000HF Quick Information

Product Type: Schottky Diode
Series: SS14A
Canonical Name: SS14A-F1-0000HF Schottky Diode
Subcategory: Rectifier

SS14A-F1-0000HF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SS14A-F1-0000HF Features

  • Schottky diode for efficient rectification.
  • 1A average rectified current capability.
  • 40V maximum DC reverse voltage.
  • Surface mountable DO-214AC (SMA) package.
  • RoHS3 compliant and REACH unaffected.

SS14A-F1-0000HF Applications

  • Used in low voltage power supplies.
  • Suitable for high frequency rectification.
  • Ideal for polarity protection circuits.
  • Common in DC-DC converter applications.

SS14A-F1-0000HF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the SS14A-F1-0000HF?

40 V.

What is the average rectified current rating?

1 A.

What is the forward voltage drop at 1 A?

500 mV maximum at 1 A.

What is the reverse recovery time?

≤500 ns (fast recovery).

What package does the SS14A-F1-0000HF come in?

DO-214AC (SMA) surface mount package.

What is the operating temperature range?

-55°C to 125°C.

What is the reverse leakage current at 40 V?

500 µA at 40 V.
