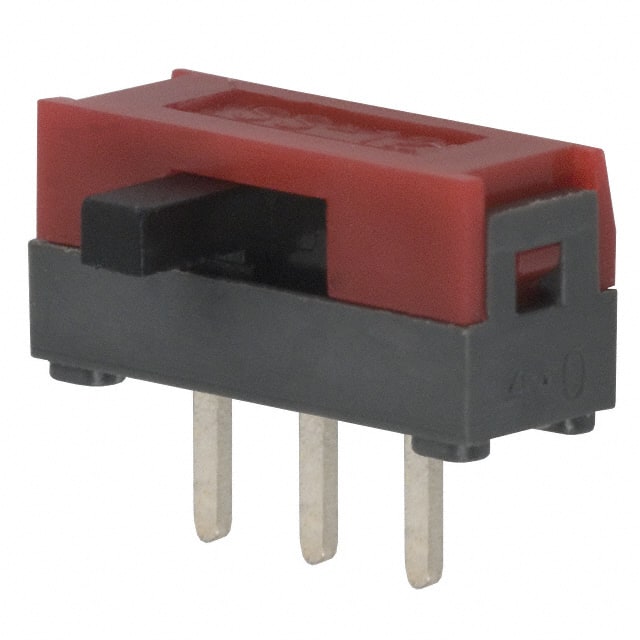

SS12SDH2 The NKK Switches SS12SDH2 is an ultraminiature slide switch with a SPDT circuit. It is rated for 100mA at 30V DC and features a through-hole mounting type.
Mfr Part #:

SS12SDH2

Available from 1 distributors
Mfr Name: NKK Switches
NKK Switches
The NKK Switches SS12SDH2 is an ultraminiature slide switch with a SPDT circuit. It is rated for 100mA at 30V DC and features a through-hole mounting type.
✓ Total Stock: 470 pcs
$ Price Range: $0.75

SS12SDH2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
470 pcs
On Request
470 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SS12SDH2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Timing
Current Rating (Amps)
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

SS12SDH2 Description

Short technical summary and product information.

The NKK Switches SS12SDH2 is an ultraminiature slide switch designed for reliable operation in electronic circuits. This switch features a Single Pole Double Throw (SPDT) configuration, offering two distinct circuit paths.



With a current rating of 100mA at 30V DC, the SS12SDH2 is suitable for low-power applications. It has a shorting (MBB) contact timing, meaning contacts are made and broken simultaneously. The switch operates in an On-On function, maintaining its position until manually changed.



Designed for ease of integration, the SS12SDH2 utilizes a through-hole mounting type with right-angle PC terminals for secure board placement. The actuator is standard in type and measures 2.50mm in length. The contact finish is silver plating over a phosphor bronze contact material, ensuring good conductivity.



This slide switch operates within a temperature range of -15°C to 60°C. Its ultraminiature size makes it ideal for space-constrained designs where reliable switching is essential.

SS12SDH2 Quick Information

Product Type: Slide Switch
Series: SS
Canonical Name: SS12SDH2 Slide Switch

SS12SDH2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SS12SDH2 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SS12SDH2 Features

  • Ultraminiature slide switch design.
  • SPDT circuit with On-On function.
  • Rated for 100mA at 30V DC.
  • Through-hole mounting with right-angle terminals.
  • Operates from -15°C to 60°C.

SS12SDH2 Applications

  • Ideal for compact electronic devices.
  • Suitable for low-power switching needs.
  • Used in control panel applications.
  • Applicable in signal routing circuits.

SS12SDH2 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the current and voltage rating for the SS12SDH2 slide switch?

The SS12SDH2 slide switch has a current rating of 100mA (DC) and a voltage rating of 30V (DC).

What type of circuit does the SS12SDH2 slide switch have?

The SS12SDH2 slide switch has a SPDT (Single Pole Double Throw) circuit.

What is the operating temperature range for the SS12SDH2 slide switch?

The SS12SDH2 slide switch operates within a temperature range of -15°C to 60°C.

How is the SS12SDH2 slide switch mounted?

The SS12SDH2 slide switch is designed for through-hole mounting and features right-angle PC terminals.
