| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

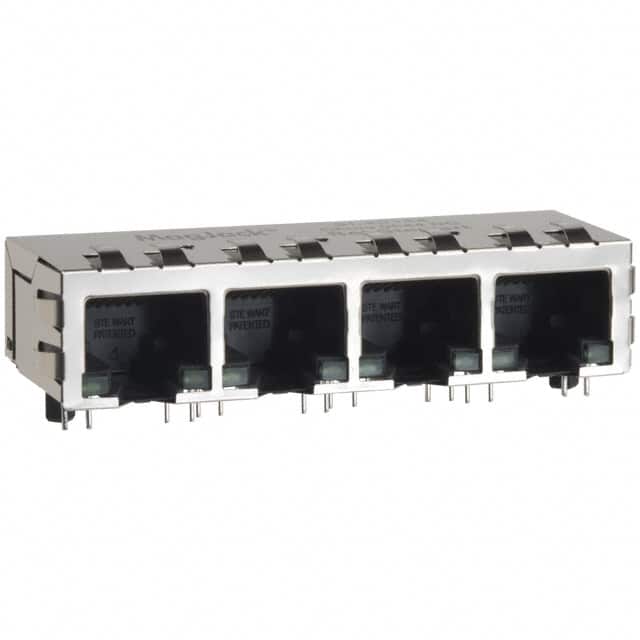

The SS-748804SC5-YG-PG4-BZ is a modular connector jack from Stewart Connector, featuring 8 positions and 8 contacts (8p8c) compatible with RJ45 Ethernet connections. It offers 4 ports in a single row, making it suitable for multi-port network interface applications. The connector is through hole mounted with a right angle (90°) orientation and solder termination for reliable PCB attachment.
Shielding is provided with an EMI finger, helping to reduce electromagnetic interference. A yellow-green LED is integrated for port status indication. The contacts are made of copper alloy with gold finish, ensuring reliable electrical connections and corrosion resistance. The tab direction is down, and a board guide feature aids in alignment during automated assembly.
Rated as Cat5, this jack supports Ethernet networks up to 100 MHz, suitable for 10BASE-T and 100BASE-TX applications. The connector is designed for use in networking equipment, routers, switches, and industrial control systems requiring multiple RJ45 ports in a compact, single-row layout.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.73 | $8.73 |
| 10+ | $7.42 | $7.42 |
| 25+ | $6.96 | $6.96 |
| 50+ | $6.79 | $6.79 |
| 96+ | $5.83 | $5.83 |
| 288+ | $5.65 | $5.65 |
| 576+ | $5.47 | $5.47 |
| 1,056+ | $5.31 | $5.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions and 8 contacts (8p8c), compatible with RJ45 Ethernet connectors.
Through hole mounting.
90° angle (right angle) orientation.
Yes, shielded with EMI finger for enhanced EMI protection.
Yes, a yellow-green LED is included.
Cat5 rating, suitable for Ethernet networks up to 100 MHz.
4 ports in a single row.
