| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
396 pcs
|
396 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 98+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

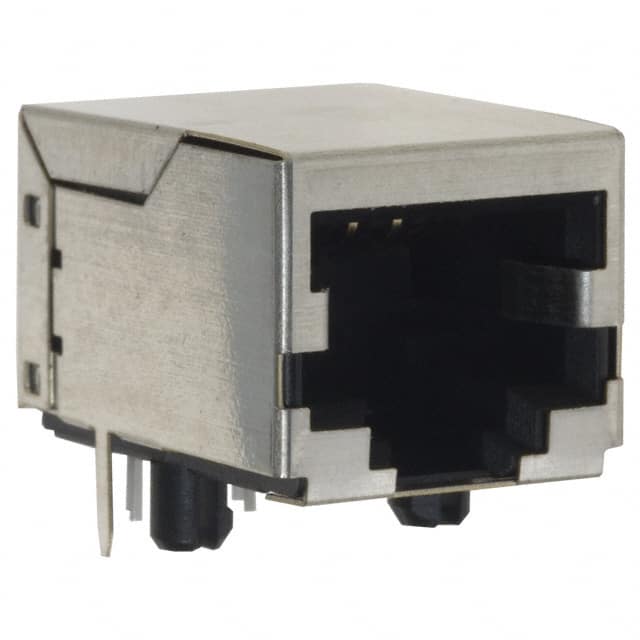

The SS-7188S-A-NF is a shielded RJ45 modular jack from Stewart Connector, designed for Cat5e Ethernet applications. It offers 8 positions and 8 contacts (8P8C) supporting Cat5e performance. The connector features a 90° right angle orientation to save board space. Mounting is through hole with solder termination for reliable mechanical connection. The shield provides electromagnetic interference (EMI) protection. Contacts are made of copper alloy with gold plating for durability and signal integrity. A board lock feature ensures secure retention on the PCB. This jack does not include LED indicators. It is RoHS3 and REACH compliant. Stewart Connector, a Bel group company, is known for high-quality interconnect products.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.53 | $2.53 |
| 10+ | $2.23 | $2.23 |
| 25+ | $1.90 | $1.90 |
| 99+ | $1.82 | $1.82 |
| 264+ | $1.69 | $1.69 |
| 528+ | $1.56 | $1.56 |
| 1,023+ | $1.42 | $1.42 |
| 2,508+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector is a jack with 8p8c (RJ45, Ethernet) positions.
The mounting type is Through Hole with solder termination.
Yes, the connector is shielded.
The contact finish is Gold.
The orientation is 90° Angle (Right).
No, it does not contain LED.
The rating is Cat5e.
