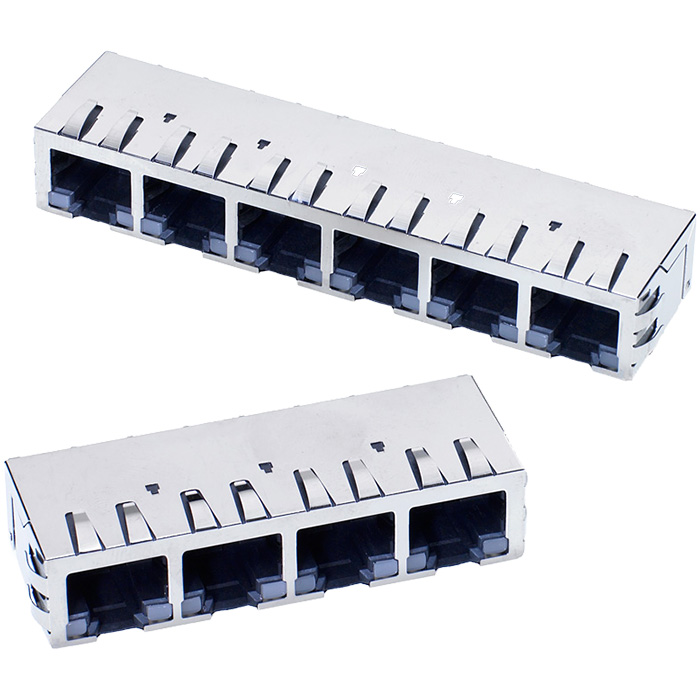

The Stewart Connector SS-718804S-A-PG4-BC is a 4-port modular jack designed for Ethernet applications. It features an 8P8C (RJ45) configuration and is rated Cat5e for reliable 100 MHz performance. The connector is oriented at a 90° right angle for space-constrained layouts and mounts via through-hole soldering.
This jack is fully shielded with EMI finger contacts to reduce electromagnetic interference, ensuring signal integrity. A board guide aids in accurate alignment during assembly. The contact material is copper alloy with a gold finish for corrosion resistance and reliable connections. No LED indicators are included.
Designed for horizontal, right-angle installation, this connector is suitable for network interface cards, routers, switches, and other data communication equipment. The compact 4-port design saves board space while providing multiple connectivity points.
Through hole.
4 ports.
90° angle (right).
Yes, shielded with EMI finger.
Does not contain LED.
Gold.
Cat5e.
