| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

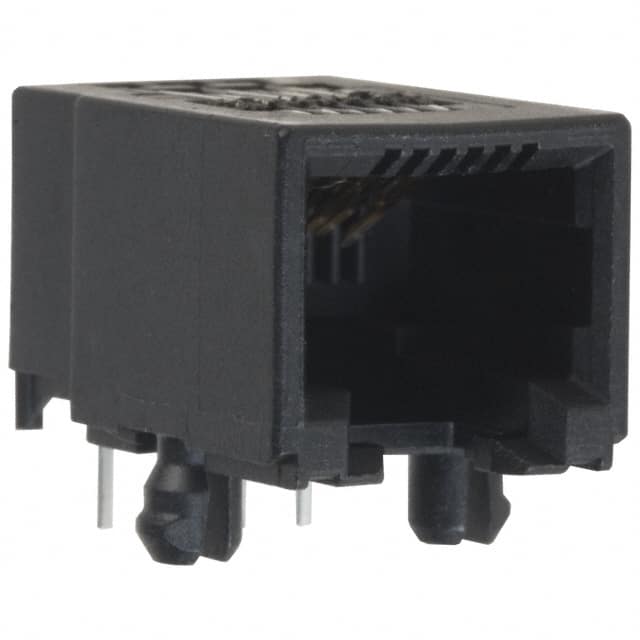

The SS-7066-NF is a modular connector jack from Stewart Connector. It features a 6p6c (6 position, 6 contact) configuration compatible with RJ11, RJ12, RJ14, and RJ25 standards. This single-port jack is designed for through-hole mounting with a right-angle (90°) orientation, making it suitable for edge-mounted applications on PCBs. The connector uses solder termination and includes a board lock feature for secure attachment during assembly. It is unshielded and has a gold-plated copper alloy contact finish. The jack is rated for Category 5 (Cat5) performance. The tab direction is down. No LED indicator is included.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.38 | $1.38 |
| 10+ | $1.18 | $1.18 |
| 25+ | $1.01 | $1.01 |
| 82+ | $0.98 | $0.98 |
| 287+ | $0.92 | $0.92 |
| 533+ | $0.88 | $0.88 |
| 1,025+ | $0.82 | $0.82 |
| 2,501+ | $0.79 | $0.79 |
| 5,002+ | $0.79 | $0.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is a modular jack with a 6p6c (6 position, 6 contact) configuration, compatible with RJ11, RJ12, RJ14, and RJ25 standards.
Through hole mounting with a right angle (90°) orientation.
No, it is unshielded.
Solder termination.
Yes, it includes a board lock for secure PCB attachment.
Gold-plated copper alloy contacts.
Rated for Category 5 (Cat5) applications.
