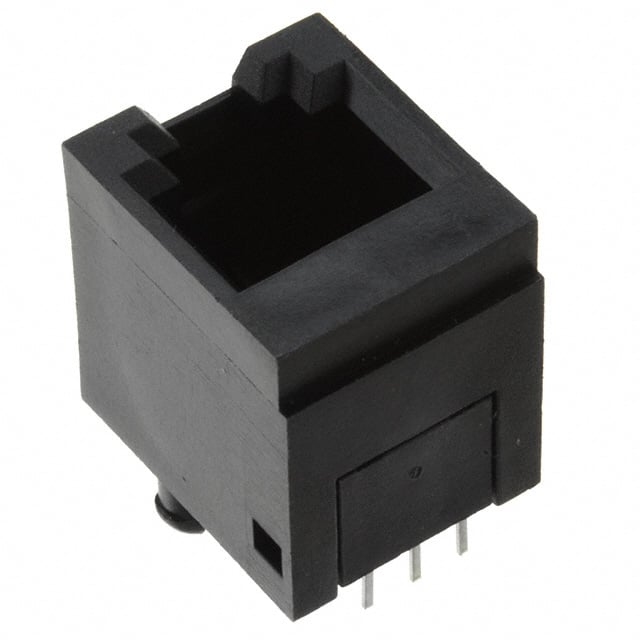

The SS-6566-NF is a modular jack connector manufactured by Stewart Connector, designed for telecommunications and data networking applications. It features a 6-position 6-contact (6P6C) configuration compatible with RJ11, RJ12, RJ14, and RJ25 standards.
This jack is vertically oriented and mounted via through-hole soldering, making it suitable for PCB designs where space is limited. The unshielded (non-shielded) variant reduces cost and complexity in applications where EMI protection is not critical. The contacts are made of copper alloy with a gold finish, ensuring reliable connectivity and corrosion resistance over repeated mating cycles.
The connector includes a board lock feature for secure attachment to the PCB during assembly. It has a single row of contacts and a single port. The tab direction is user-selectable, providing flexibility in cable orientation. This part does not include an LED indicator.
It is compliant with RoHS3 and REACH directives, and has an MSL (Moisture Sensitivity Level) rating of 1 (unlimited floor life). The connector is commonly used in telecommunication equipment, networking devices, and other applications requiring modular phone or data jacks.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.55 | $1.55 |
| 10+ | $1.32 | $1.32 |
| 40+ | $1.08 | $1.08 |
| 120+ | $1.06 | $1.06 |
| 280+ | $0.96 | $0.96 |
| 520+ | $0.92 | $0.92 |
| 1,000+ | $0.90 | $0.90 |
| 2,520+ | $0.87 | $0.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions (6P6C).
Through Hole.
No, it is unshielded.
Gold.
Vertical.
No, it does not contain an LED.
RJ11, RJ12, RJ14, RJ25.
