| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,680 pcs
|
1680 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Plating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Ratings | |
| Shield Type | |
| Shielding | |
| Termination |

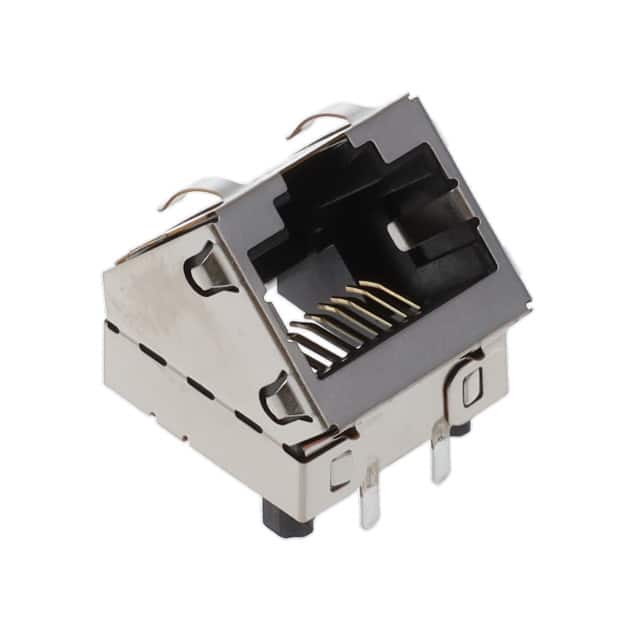

The Stewart Connector SS-60300-059 is a shielded 45° angle RJ45 jack from the 60300 series, designed for high-speed Ethernet applications. It features 8p8c (RJ45) positions with a Cat6a rating, supporting 2.5G, 5G, and 10GBase-T signals. The jack is through hole mounted with solder termination and has a panel ground shield type for enhanced EMI protection.
This jack is compatible with Power over Ethernet (PoE) from 15W to 100W, making it suitable for powered devices. The contacts are selectively plated with 50 micro-inches of gold for reliable connectivity. Non-LED versions like this one are IR reflow compatible, allowing for automated assembly. The compact footprint saves PCB space while maintaining robust electrical performance.
The 60300 series is engineered to deliver reliable 10GBase-T Ethernet in a passive connector, addressing crosstalk and return loss issues common in high-frequency applications. The 45° orientation provides flexible cable management in tight enclosures.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.81 | $3.81 |
| 10+ | $3.24 | $3.24 |
| 25+ | $2.83 | $2.83 |
| 70+ | $2.68 | $2.68 |
| 280+ | $2.55 | $2.55 |
| 560+ | $2.43 | $2.43 |
| 1,050+ | $2.32 | $2.32 |
| 2,520+ | $2.26 | $2.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is a jack connector with 8p8c (RJ45, Ethernet) positions.
It is shielded with panel grounds.
Through hole mounting with solder termination.
45° angle.
Cat6a.
Yes, it supports 15W to 100W PoE.
Gold, 50 µin.
