| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,850 pcs
|
13850 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

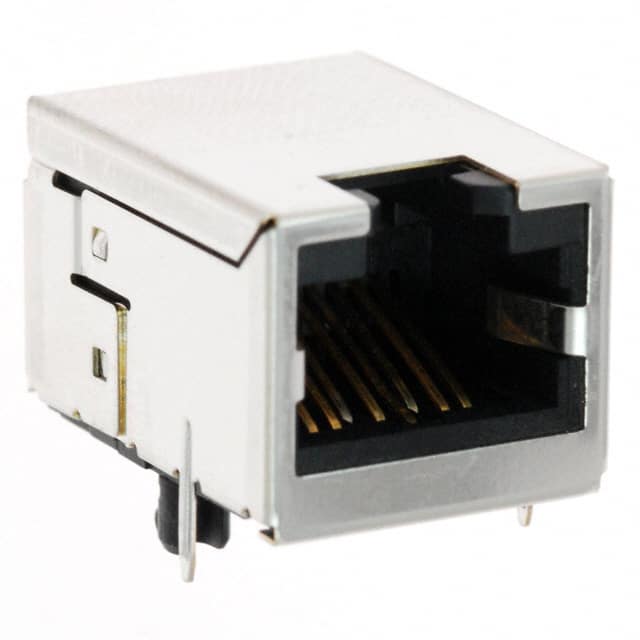

The Stewart Connector SS-60000-009 is a modular jack designed for Ethernet connectivity. It features an 8p8c (RJ45) contact arrangement in a single-port configuration. The connector is shielded for EMI protection and is rated for Category 6 performance, supporting Gigabit Ethernet applications.
The jack is mounted via through-hole technology and has a 90-degree right-angle orientation, suitable for edge-mounted PCB layouts. Termination is via solder connections. The contacts are made of copper alloy with a gold finish for reliable signal integrity. A board lock feature aids in secure PCB retention during assembly. The tab direction is up, and the connector does not include integrated LEDs.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.28 | $3.28 |
| 10+ | $2.61 | $2.61 |
| 50+ | $2.48 | $2.48 |
| 100+ | $2.36 | $2.36 |
| 250+ | $2.21 | $2.21 |
| 500+ | $2.19 | $2.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is a Jack (RJ45).
It has 8 positions with 8 contacts (8p8c, RJ45, Ethernet).
The mounting type is Through Hole.
Yes, it is shielded.
It is rated Category 6 (Cat6).
No, it does not contain an LED.
The orientation is 90° Angle (Right).
