| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

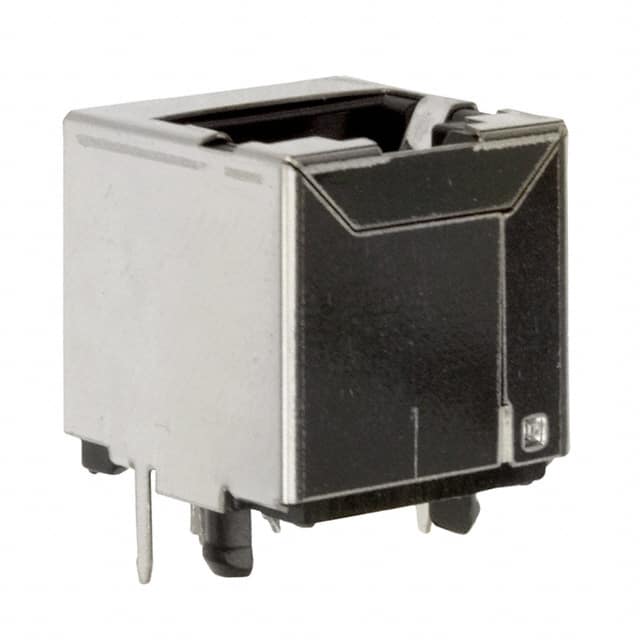

The Stewart Connector SS-60000-008 is a single-port, 8P8C (RJ45, Ethernet) modular jack designed for through-hole mounting in a vertical orientation. This connector is shielded for EMI protection and features a board lock for secure attachment to the PCB. The contacts are made of copper alloy with a gold finish, ensuring reliable electrical performance and corrosion resistance.
Rated as Category 6 (Cat6), this jack supports high-speed Ethernet applications up to Gigabit speeds. The user-selectable tab direction provides flexibility in cable routing and panel design. The connector does not include integrated LEDs, making it suitable for applications where external status indication is preferred.
The SS-60000-008 is terminated via solder connections, compatible with standard through-hole soldering processes. Its shielded construction helps reduce electromagnetic interference in networking equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.07 | $3.07 |
| 10+ | $2.62 | $2.62 |
| 25+ | $2.26 | $2.26 |
| 80+ | $2.19 | $2.19 |
| 1,040+ | $2.02 | $2.02 |
| 2,560+ | $1.90 | $1.90 |
| 5,040+ | $1.78 | $1.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SS-60000-008 is a modular jack (RJ45) connector.
It has 8 positions with 8 contacts (8P8c, RJ45, Ethernet).
It is a through-hole mount connector.
Yes, it is a shielded connector.
It is rated as Category 6 (Cat6).
No, it does not contain an LED.
