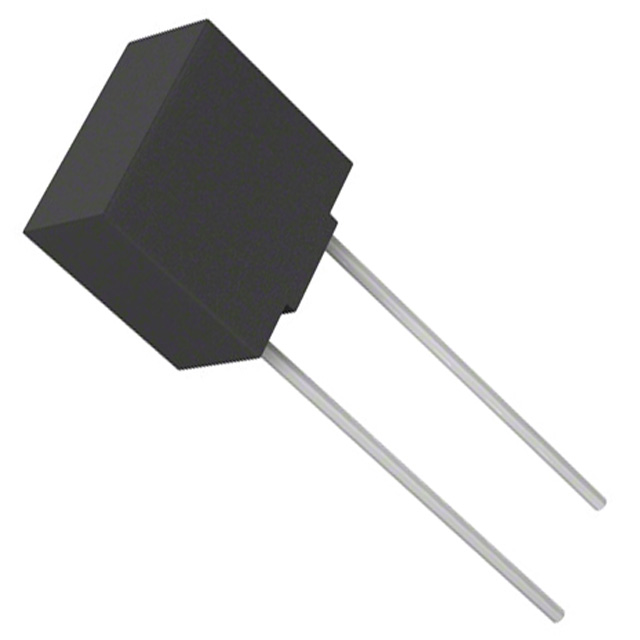

SS-5H-1A-AP FUSE BOARD MNT 1A 250VAC RADIAL. Slow blow, 100A breaking capacity, through-hole radial box package.
Mfr Part #:

SS-5H-1A-AP

Available from 1 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
FUSE BOARD MNT 1A 250VAC RADIAL. Slow blow, 100A breaking capacity, through-hole radial box package.
✓ Total Stock: 12,000 pcs
$ Price Range: $0.26 - $0.64

SS-5H-1A-AP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SS-5H-1A-AP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Breaking Capacity @ Rated Voltage
Current Rating (Amps)
Fuse Type
Height
Length
Melting I²t
Mounting Type
Operating Temperature
Response Time
Voltage Rating
Width
View Similar Products (0)

SS-5H-1A-AP Description

Short technical summary and product information.

The SS-5H-1A-AP is a board mount fuse from Eaton - Electronics Division, rated for 1A at 250VAC. It features a slow blow (time-delay) response, suitable for applications with inrush currents. Electrical specifications include a breaking capacity of 100A at rated voltage, with a melting I²t of 7.4 A²s. The operating temperature range is -40°C to 125°C, making it suitable for a wide range of environments. The fuse is housed in a radial, box package with through-hole mounting. Dimensions are 8.50mm length, 4.30mm width, and 8.35mm height. It is approved by multiple agencies including CQC, cURus, KC, PSE, TUV, and VDE.

SS-5H-1A-AP Quick Information

Product Type: Fuse
Series: SS-5H
Canonical Name: Fuse, Board Mount, 1A, 250VAC, Slow Blow, Radial, Box
Subcategory: Slow Blow Fuse

SS-5H-1A-AP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SS-5H-1A-AP Estimated Pricing

Qty Low High
1+ $0.64 $0.64
10+ $0.60 $0.60
50+ $0.50 $0.50
100+ $0.45 $0.45
250+ $0.41 $0.41
500+ $0.37 $0.37
1,000+ $0.30 $0.30
2,000+ $0.29 $0.29
5,000+ $0.26 $0.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

SS-5H-1A-AP Features

  • Rated for 1A at 250VAC.
  • Slow blow (time-delay) response.
  • 100A breaking capacity at rated voltage.
  • Through-hole radial box package.
  • Operating temperature -40°C to 125°C.

SS-5H-1A-AP Applications

  • Protects against overcurrent in AC circuits.
  • Suitable for inrush current applications.
  • Used in power supplies and lighting.
  • Ideal for industrial control equipment.
  • Mounts directly on printed circuit boards.

SS-5H-1A-AP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the SS-5H-1A-AP?

1 A.

What is the voltage rating?

250 V.

What is the breaking capacity?

100 A at rated voltage.

What is the response time?

Slow blow.

What package type is available?

Radial, box through-hole.

What is the melting I²t value?

7.4 A²s.

What approvals does this fuse have?

CQC, cURus, KC, PSE, TUV, VDE.
