Mfr Part #:

SS-52400-002

Name: SS-52400-002
Brand: Stewart Connector
SKU: SS-52400-002

Mfr Name: Stewart Connector

Description:

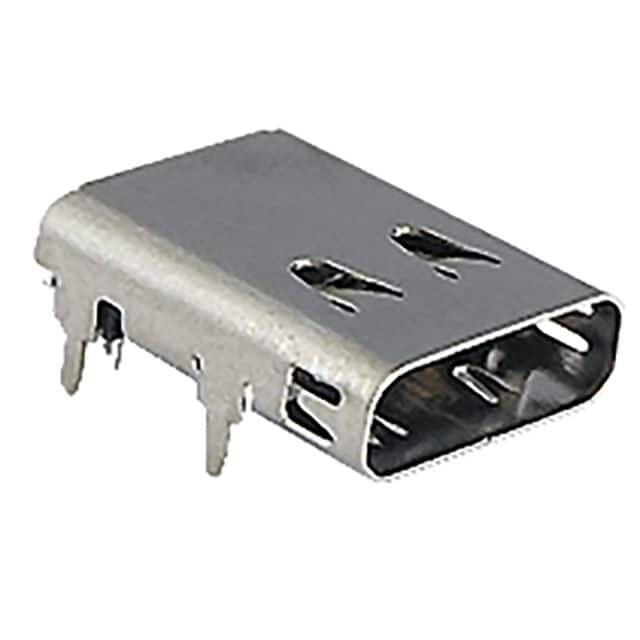

CONN USB TYPE C RT. ANGLE JACK

Stock on Request

SS-52400-002 Description

Short technical summary and product information.

CONN USB TYPE C RT. ANGLE JACK

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

SS-52400-003

Stewart Connector

CONN USB TYPE C RT. ANGLE JACK

Category	USB, DVI, HDMI Connector Assemblies
Manufacturer Name	Stewart Connector
Connector Type	USB-C (USB TYPE-C)
Current Rating (Amps)	5A
Gender	Receptacle
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle; Through Hole
Number of Contacts	24
Number of Ports	1
Operating Temperature	-40°C ~ 105°C
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage	20V
