| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Per Contact) | |
| Data Rate | |
| Features | |
| Gender | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature Range | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style |

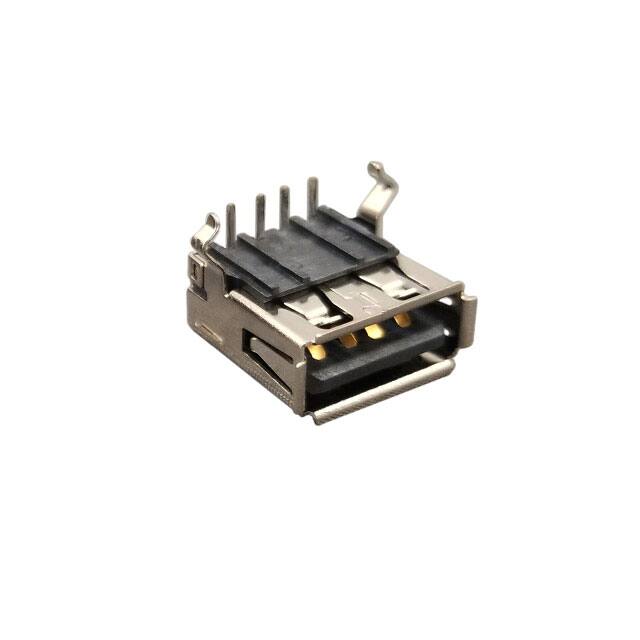

The SS-52100-001 is a USB 2.0 Type A receptacle connector from Stewart Connector, designed for reliable I/O connections in a wide range of applications. It features a single port with 4 contacts, through-hole right angle mounting, and solder termination for secure PCB attachment. The connector is fully shielded against electromagnetic interference and includes a board lock for enhanced mechanical retention.
Electrical specifications include a current rating of 1.5 A per contact and a data rate of 480 Mbit/s, compliant with USB 2.0 standards. The operating temperature range spans -55°C to 85°C, making it suitable for demanding environments. The high-temperature plastic housing supports reflow or wave soldering processes.
Common applications include desktop and laptop computers, portable storage devices, IoT equipment, printers, scanners, audio and diagnostic devices, POS terminals, servers, and gaming ports. The right angle orientation allows for space-saving PCB layouts, and the board lock feature ensures robust connection under vibration or shock.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
| 10+ | $0.60 | $0.60 |
| 25+ | $0.55 | $0.55 |
| 100+ | $0.43 | $0.43 |
| 250+ | $0.39 | $0.39 |
| 1,000+ | $0.36 | $0.36 |
| 3,000+ | $0.34 | $0.34 |
| 6,000+ | $0.30 | $0.30 |
| 12,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 contacts.
1.5 A per contact.
Through hole, right angle.
USB 2.0.
-55°C to 85°C.
Yes, shielded.
