| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
298 pcs
|
298 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact System | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Prop 65 | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination |

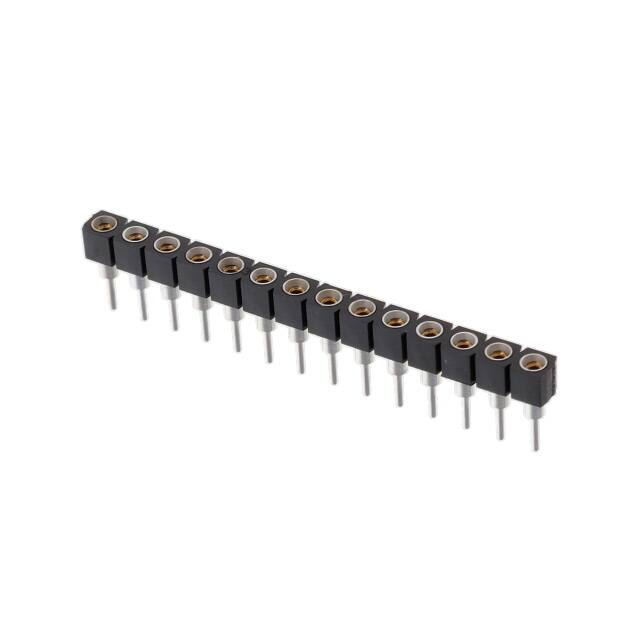

The SS-114-S-2 from Samtec is a .100" (2.54mm) pitch single row screw machine socket strip designed for board-to-board connections. It is a receptacle with 14 female socket contacts, all loaded, arranged in a single row. The contacts are made of beryllium copper and have a tin finish with a thickness of 10.0µin (0.25µm). The connector uses through hole mounting with solder termination, and features a push-pull fastening type. The insulation is black with a height of 2.54mm (0.100") and the contact length is 3.18mm (0.125"). The operating temperature range is -55°C to 125°C. The SS-114-S-2 is packaged in a tube containing 16 parts. This socket strip is suitable for applications requiring reliable, precision contacts in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.68 | $2.68 |
| 48+ | $1.85 | $1.85 |
| 112+ | $1.84 | $1.84 |
| 1,008+ | $1.55 | $1.55 |
| 2,000+ | $1.32 | $1.32 |
| 5,008+ | $1.28 | $1.28 |
| 10,000+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SS-114-S-2 has 14 positions, all loaded.
The pitch is 2.54mm (0.100 inches).
The mounting type is through hole.
The contact material is beryllium copper.
The operating temperature range is -55°C to 125°C.
The SS-114-S-2 is packaged in a tube with a standard quantity of 16 parts.
The contact finish thickness is 10.0µin (0.25µm) of tin.
