| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Size Range | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shell Material | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

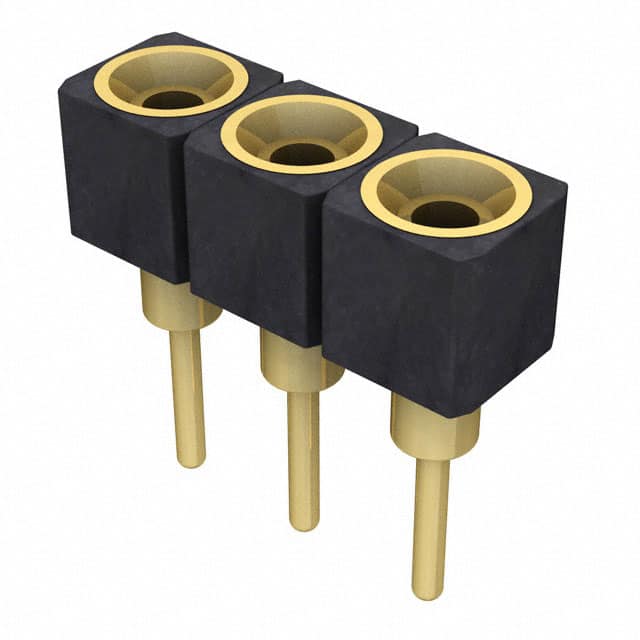

The Samtec SS-103-G-2 is a 3 position single row receptacle from the SS series. It features a 2.54mm (0.100") pitch and is designed for through hole mounting with solder termination. The connector uses a push-pull fastening type and is intended for board to board applications.
The contact material is beryllium copper with a gold finish of 30.0µin (0.76µm) over 50µin nickel. The insulator is black G.F. polyester. The operating temperature range is -55°C to +125°C. The lead style is -2 and the contact length is 3.18mm (0.125"). The insulation height is 2.54mm (0.100").
This socket strip mates with Samtec TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series headers. The lead size range is 0.38mm to 0.56mm diameter. The part is RoHS compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.30 | $1.30 |
| 50+ | $1.22 | $1.22 |
| 100+ | $1.11 | $1.11 |
| 500+ | $1.00 | $1.00 |
| 1,000+ | $0.91 | $0.91 |
| 2,000+ | $0.62 | $0.62 |
| 5,000+ | $0.53 | $0.53 |
| 10,000+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 3 positions, all loaded, in a single row.
Through hole mounting with solder termination.
-55°C to +125°C.
Gold contact finish with 30.0µin (0.76µm) thickness.
Beryllium copper (BeCu).
Yes, the datasheet states RoHS compliant.
