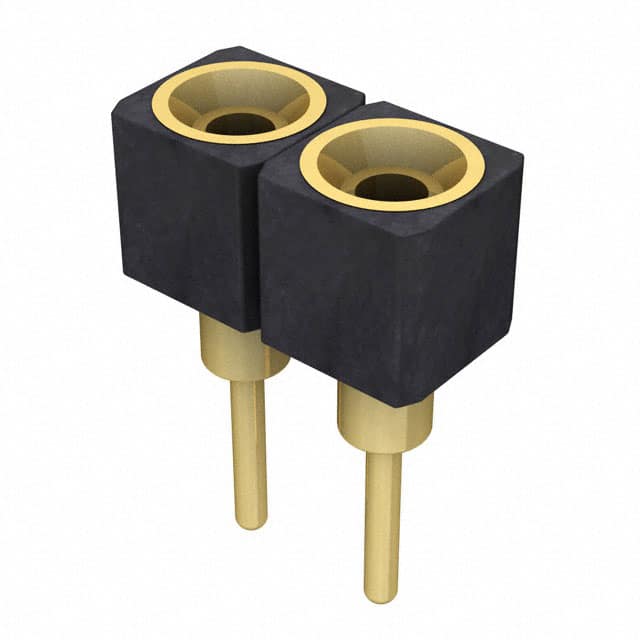

SS-102-G-2 The Samtec SS-102-G-2 is a 2-position single row female socket receptacle with a 2.54mm pitch. It features through-hole mounting, gold contact finish, and a push-pull fastening type.
Mfr Part #:

SS-102-G-2

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec SS-102-G-2 is a 2-position single row female socket receptacle with a 2.54mm pitch. It features through-hole mounting, gold contact finish, and a push-pull fastening type.
✓ Total Stock: 16 pcs
$ Price Range: $0.31 - $0.94

SS-102-G-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SS-102-G-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulator Material
Lead Size Range
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shell Material
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SS-102-G-2 Description

Short technical summary and product information.

The Samtec SS-102-G-2 is a 2-position single row female socket receptacle from the SS series. It is designed for board-to-board applications with a 2.54mm (0.100") pitch.



Key specifications include through-hole mounting with solder termination. The contact material is beryllium copper with a gold finish of 30.0µin (0.76µm). The insulator is black G.F. polyester. The operating temperature range is -55°C to 125°C.



This receptacle mates with Samtec TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series headers. It features a push-pull fastening type and is suitable for applications requiring reliable connections in harsh environments.



The part is RoHS compliant but not lead-free solderable (lead wave only). It has an MSL of 1 (unlimited). Note: Some specifications like current and voltage ratings are not provided in the available data.

SS-102-G-2 Quick Information

Product Type: Receptacle, Female Socket
Series: SS
Canonical Name: Samtec SS-102-G-2 2 Position Single Row Female Socket Receptacle
Subcategory: Board to Board Receptacle

SS-102-G-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No, Lead Wave only

SS-102-G-2 Estimated Pricing

Qty Low High
1+ $0.94 $0.94
50+ $0.71 $0.71
100+ $0.63 $0.63
500+ $0.51 $0.51
1,000+ $0.38 $0.38
2,000+ $0.36 $0.36
5,000+ $0.36 $0.36
10,000+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

SS-102-G-2 Features

  • 2-position single row female socket receptacle.
  • 2.54mm (0.100") pitch for compact designs.
  • Gold plated beryllium copper contacts.
  • Through-hole mounting with solder termination.
  • Operating temperature range -55°C to 125°C.

SS-102-G-2 Applications

  • Board-to-board interconnections in electronic assemblies.
  • Used in industrial control and instrumentation.
  • Suitable for harsh environment applications.
  • Ideal for prototyping and production runs.

SS-102-G-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SS-102-G-2 have?

2 positions.

What is the pitch of the SS-102-G-2?

2.54mm (0.100").

What is the mounting type of the SS-102-G-2?

Through hole.

What is the contact finish on the SS-102-G-2?

Gold with a thickness of 30.0µin (0.76µm).

What is the operating temperature range?

-55°C to 125°C.

What is the fastening type?

Push-pull.

Is the SS-102-G-2 RoHS compliant?

Yes, it is RoHS compliant (RoHS3).
