| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
515 pcs
|
515 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

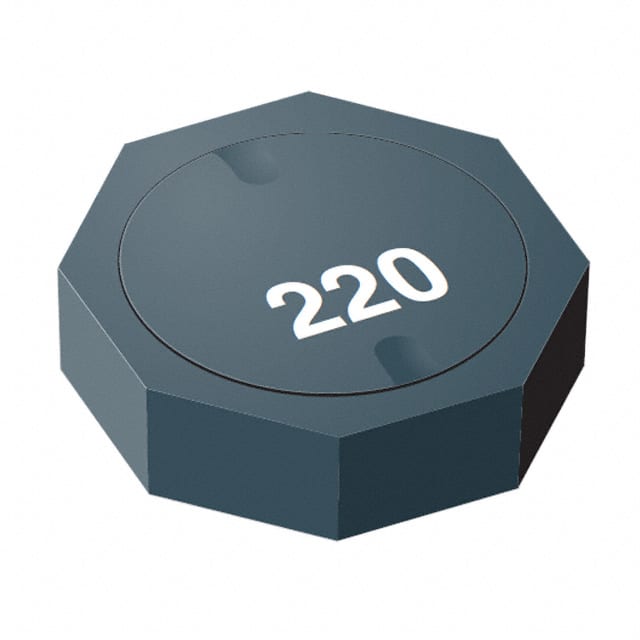

The SRU6025A-2R2Y is a fixed inductor manufactured by Bourns, designed for surface mount applications. It features a 2.2 microhenry inductance with a tolerance of ±30% at 100 KHz / 0.1 V. The inductor has a maximum DC resistance of 24 milliohms and can handle a maximum current of 3.4 amps with a saturation current of 2.35 amps. Its construction is wirewound on a drum core with a ferrite material, and it is shielded to reduce electromagnetic interference.
This component operates within a temperature range of -40°C to 125°C, making it suitable for various thermal environments. Its physical dimensions are 6.50mm in length, 6.20mm in width, and 2.80mm in height. The inductor is used in power supplies, filtering, and energy storage circuits where stable inductance and high current handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 2.2 microhenry.
The current rating is 3.4 amps RMS.
The maximum DCR is 24 milliohms.
The self-resonant frequency is 65 MHz.
