| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
319 pcs
|
319 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material (Nominal) | |
| Current | |
| Current Rating (@ Temp Rise 30 °C max) | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Nominal) | |
| Q @ Freq | |
| Q Factor (Typical @ 2.52 MHz) | |
| Saturation Current (Typical @ Ind. drop 35 % typ. at Isat) | |
| Self Resonant Frequency (Typical) | |
| Shielding | |
| Storage Temperature | |
| Storage Temperature (Nominal) | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Maximum) |

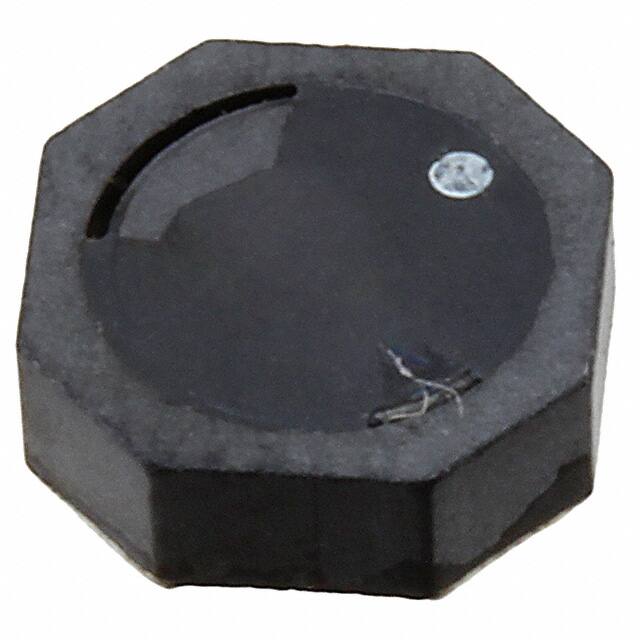

The Bourns SRU6025-220Y is a shielded SMD power inductor from the SRU6025 series. It provides an inductance value of 22µH with a tolerance of ±30% and a typical Q factor of 12 at 2.52MHz. The inductor has a maximum DC resistance (DCR) of 130mΩ and a rated current of 0.7A (RMS) with a saturation current of 1.6A.
Designed for surface mounting, this inductor has a compact size with dimensions of 6.50mm x 6.20mm and a height of 2.80mm. It operates reliably within a temperature range of -40°C to 125°C. The core material is ferrite, and the construction is wirewound, providing shielded performance.
This component is suitable for applications such as the input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs. It is compliant with RoHS3 standards and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22µH.
The saturation current is 1.6A, and the RMS current is 0.7A.
The maximum DC resistance is 130mΩ.
The operating temperature range is -40°C to 125°C.
It is a Surface Mount package.
It is supplied 600 pieces per reel.
Yes, it is RoHS3 compliant.
