| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,800 pcs
|
10800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

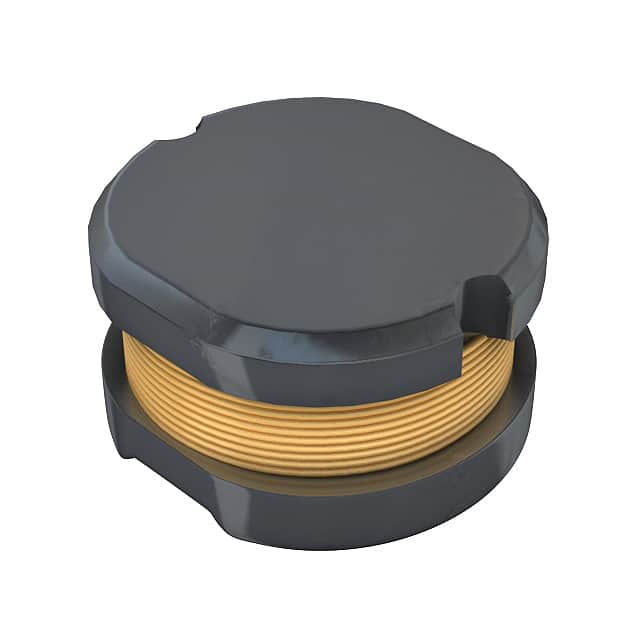

The Bourns SRU3028-470Y is a shielded SMD power inductor from the SRU3028 series. It provides an inductance value of 47µH with a tolerance of ±30% and a DC resistance of 815mΩ. The rated current is 320mA, with a saturation current of 380mA.
This inductor is designed for surface mounting and has a compact size with dimensions of 3.5mm x 3.3mm and a height of 2.8mm. It operates within a temperature range of -40°C to 125°C. The core material is ferrite, and it is shielded for reduced electromagnetic interference.
Applications include input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs. The inductor is RoHS 3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 47µH.
The rated current is 320mA, with a saturation current of 380mA.
The DC resistance is 815mΩ.
The dimensions are 3.5mm in length, 3.3mm in width, and 2.8mm in height.
The operating temperature range is -40°C to 125°C.
Yes, it is RoHS 3 compliant.
The MSL is 1.
