| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

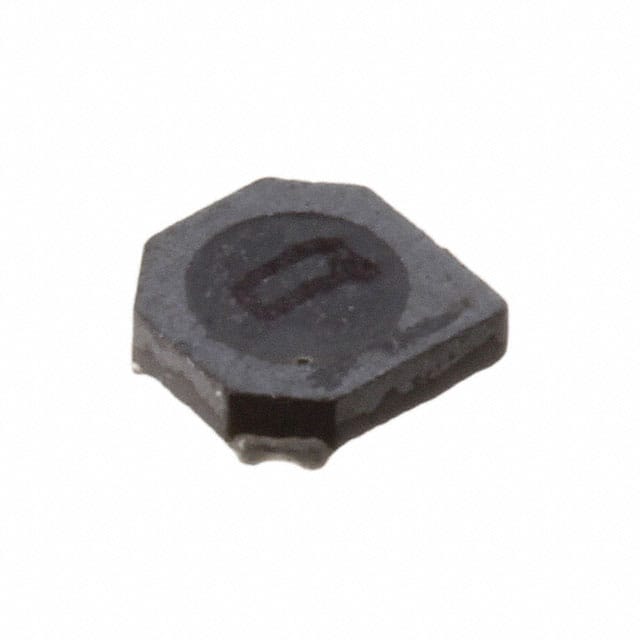

The Bourns SRU3011-4R7Y is a shielded surface mount power inductor from the SRU3011 series. It features a 4.7µH inductance with a tolerance of ±30% and a low DC resistance of 178mΩ maximum.
This inductor is designed for applications requiring a current rating of up to 630mA and operates effectively within a temperature range of -40°C to 125°C. Its shielded construction helps minimize electromagnetic interference.
The component has a compact footprint with dimensions of 3.50mm L x 3.30mm W and a height of 1.20mm, making it suitable for space-constrained designs. It is supplied in a nonstandard package, typically on tape and reel for automated assembly.
Key electrical characteristics include a Q factor of 8 at 7.96MHz and a minimum self-resonant frequency of 90MHz. The core material is ferrite, contributing to its performance in power supply applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 4.7µH measured at 100kHz.
The typical current rating is 630mA.
The maximum DC resistance is 178mΩ.
The minimum self-resonant frequency is 90MHz.
The package dimensions are 3.50mm length, 3.30mm width, and 1.20mm height.
The operating temperature range is -40°C to +125°C.
